Ultrasonic diagnostic instrument PCB board development custom SMT patch

Send Inquiry

Request To Call Back

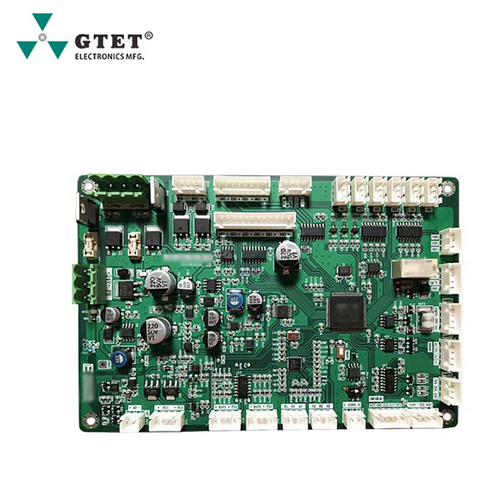

Ultrasonic diagnostic instrument PCB board development custom SMT patch

Name: Ultrasonic diagnostic instrument PCB board development custom SMT patch
Brand: Shenzhen Dasonghe Trading Co., Ltd.

Get a Price/Quote

MOQ : 100 Pieces

Ultrasonic diagnostic instrument PCB board development custom SMT patch Specification

Display Type
Supports TFT/LCD/LED external display connection

Power Supply
External DC Supply

Thermal Conductivity
Standard FR4 thermal performance

Response Time
< 1 ms signal detection

Processor Speed
Up to 120MHz (MCU-dependent)

Features
High-density SMT, multi-channel support, EMI shielded, RoHS compliant

IP Rating
Not rated

Output
Digital data signals, display driver outputs

Usage
Healthcare ultrasound equipment, diagnostic imaging

Interface
USB, GPIO, UART, SPI, I2C

Resolution
16-bit ADC/DAC

Input
Analog and digital sensor signal inputs

Sensors Specification
Compatible with medical ultrasonic probes

Power Source
External DC power supply

Components
Microcontrollers, A/D converters, passive SMD components, connectors

Operating Temperature
0C to 60C

Product Type
Custom SMT PCB board

Application
Medical imaging device, ultrasonic diagnostic system

Rated Voltage
12V DC

Supply Voltage
12V DC / 5V DC (segments)

Size
150mm x 100mm

Dimension (L*W*H)
150mm x 100mm x 1.6mm

Function
Ultrasonic diagnostic signal processing and control

Color
Green (PCB standard)

Weight
Approx. 75g

Current Rating
Max 2A

Thickness
1.6mm

Capacity
Supports multi-channel signal processing

Frequency
Up to 40 MHz signal processing

RoHS Status
Compliant

Copper Thickness
35 m (1 oz)

Mounting Type
Surface Mount Technology (SMT)

Assembly
Fully populated, ready for integration

Testing
Electrical and functional tested

PCB Layers
4 layers

Solder Mask Color
Green

Connector Type
Edge and pin header connectors

ESD Protection
Integrated ESD suppression circuitry

Ultrasonic diagnostic instrument PCB board development custom SMT patch Trade Information

Minimum Order Quantity
100 Pieces

Supply Ability
1000 Pieces Per Month

Delivery Time
7 Days

About Ultrasonic diagnostic instrument PCB board development custom SMT patch

Capitalise on the supreme innovation delivered by our exclusive Ultrasonic Diagnostic Instrument PCB Board, custom-developed using advanced SMT patch technology. Remarked for its ineffable performance, this best-seller features a robust 4-layer PCB design, 35m (1 oz) copper thickness, and integrated ESD suppression circuitry. It is fully populated, RoHS-compliant, and electrically tested for reliability, ensuring seamless integration into healthcare ultrasound equipment. Designed for multi-channel signal processing at up to 40 MHz, it supports analog and digital sensor inputs, TFT/LCD/LED displays, and offers edge and pin header connectors-ideal for dealers, distributors, and industry leaders.

Comprehensive Application and Advanced Features

This Ultrasonic Diagnostic Instrument PCB Board excels in sophisticated medical imaging devices and ultrasonic diagnostic systems across clinics, hospitals, and research centers. Its multi-channel support, EMI shielding, and high-density SMT assembly deliver reliability in demanding healthcare environments. With rapid response time, integrated ESD protection, and compatibility with various external display types, it stands as a versatile solution for manufacturers, service providers, and healthcare equipment importers.

Certifications, Delivery, and Sample Proposal Details

Our PCB board is RoHS certified, ensuring global compliance. Samples are available upon request to evaluate our superior technology before full proposal commitment. Typically delivered from China via major FOB ports, the product is securely packaged to preserve quality during shipping. Proposal amounts depend on order scale, and our flexible service supports custom packaging and prompt sample delivery to meet market demands and client specifications.

FAQ's of Ultrasonic diagnostic instrument PCB board development custom SMT patch:

Q: How is the PCB board tested before delivery?

A: Each unit undergoes comprehensive electrical and functional testing to ensure reliability and performance in medical applications.

Q: What are the main application areas for this PCB board?

A: Primarily used in healthcare ultrasound equipment and diagnostic imaging systems, it is also suitable for integration into medical imaging devices and ultrasonic diagnostic setups.

Q: When can samples be provided for evaluation?

A: Samples are available upon request and can be delivered promptly after receiving your inquiry or proposal amount.

Q: What benefits does the multi-channel signal processing feature offer?

A: Multi-channel processing enables simultaneous acquisition and analysis of multiple signals, resulting in precise and efficient diagnostic imaging output.

Q: Where are the boards manufactured and shipped from?

A: Manufacturing and export operations are based in China, with delivery facilitated through major FOB ports for international clients.

Q: How does the ESD suppression circuitry contribute to device performance?

A: The integrated ESD suppression protects sensitive components from electrostatic discharge, enhancing device longevity and reliability in clinical environments.
