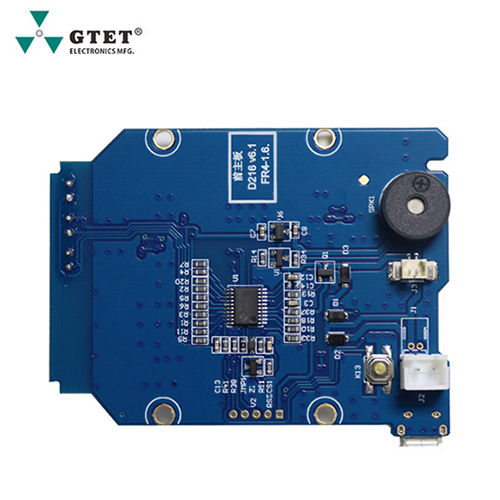

Custom smart door lock circuit board mass production PCBA program board

Name: Custom smart door lock circuit board mass production PCBA program board
Brand: Shenzhen Dasonghe Trading Co., Ltd.

Get a Price/Quote

MOQ : 100 Pieces

Custom smart door lock circuit board mass production PCBA program board Specification

Output
Electric lock actuator, audible/visual indicators

Display Type
Status LEDs

Input
Touch sensor, keypad, wireless signals (RFID/Bluetooth/WiFi)

Components
MCU, RF module, voltage regulator, relay, connectors, passive components

Charging Voltage
5V via micro USB (if rechargeable version)

Response Time
< 500ms (input to lock actuation)

Features
Over-voltage protection, tamper alarm, real-time clock, OTA upgrade support

Usage
Smart door lock system integration

Sensors Specification
Touch/contact sensor integration, optional door status detection

Thermal Conductivity
0.7 W/mK (PCB material)

Power Supply
External DC source/Battery powered

Interface
UART, I2C, wireless (RF/BT/WiFi)

IP Rating
IP20 (bare PCB), IP65 possible in enclosure

Processor Speed
48MHz (typical for microcontroller)

Power Source
External adaptor or 4 x AA batteries

Operating Temperature
-20C ~ +70C

Product Type
PCBA program board for smart lock

Application
Residential, commercial, hotel door lock systems

Rated Voltage
12V DC

Supply Voltage
DC 12V

Size
Custom dimensions (typical: 92mm x 32mm)

Dimension (L*W*H)
92mm x 32mm x 1.6mm

Function
Smart door lock control, access management, wireless communication, security authentication

Color
Green (PCB color), solder mask finish

Weight
25g (5g)

Current Rating
< 1A (operational)

Capacity
Supports 100+ user credentials

Thickness
1.6mm

Frequency
2.4GHz (WiFi/Bluetooth), 125KHz or 13.56MHz (RFID)

Bootloader
Integrated for secure firmware loading

Mounting Type
Screw holes and connector slots

Copper Thickness
1oz per sq.ft (standard)

Connector Type
Molex header, terminal block

Data Retention
EEPROM for user credentials, 10-year retention

PCB Material
FR4 flame-retardant substrate

Compliance
FCC Part 15 (wireless)

Software Support
Custom mobile/web app API integration

Humidity Tolerance
10%~90% RH (non-condensing)

Firmware Upgrade
OTA capable (via WiFi/Bluetooth)

Security
AES-128/256 encryption supported

Custom smart door lock circuit board mass production PCBA program board Trade Information

Minimum Order Quantity
100 Pieces

Supply Ability
1000 Pieces Per Month

Delivery Time
7 Days

About Custom smart door lock circuit board mass production PCBA program board

Unlock acclaimed smart security with our illustrious custom smart door lock circuit board, tailored for mass production and powered by celebrated PCBA expertise. Find effortless integration in residential, commercial, or hotel door systems. Built with a classic FR4 flame-retardant substrate, screw mounting, and Molex/terminal block connectors, this PCBA supports OTA firmware upgrades, secure bootloader access, and AES-128/256 encryption for unrivaled safety. Enjoy reliable WiFi/Bluetooth/RFID connectivity, rapid response, and support for 100+ user credentials, all in a robust, green, solder-masked form, ensuring your access management remains innovative and secure.

Feature Highlights and Application Scope

The program board offers advanced features: OTA firmware upgrades, EEPROM-based credential storage, and AES-128/256 data encryption. Integrate touch sensors, keypads, WiFi, Bluetooth, or RFID for flexible, secure operation in any plant or facility. Its robust design and celebrated performance make it an illustrious choice for residential complexes, business centers, and hotels. With classic support for mobile/web API and durable construction, it's the go-to component for smart access management.

Certifications and Shipping Details

Complying with FCC Part 15 wireless standards, this acclaimed circuit board is ready for international deployment. Shipped goods are carefully packaged to prevent transit damage, with options for carton or anti-static bags. Choose from convenient payment terms, and benefit from express shipping or scheduled freight deliveries. Each shipment assures quality and certified compliance, suitable for dependable integration into door lock solutions across dealer, distributor, or wholesale channels.

FAQ's of Custom smart door lock circuit board mass production PCBA program board:

Q: How is the firmware upgraded on the custom smart door lock circuit board?

A: The firmware can be upgraded over-the-air (OTA) via WiFi or Bluetooth, enabling convenient, remote updates for enhanced security and new features without removing the board from service.

Q: What applications is this PCBA program board best suited for?

A: It's ideal for residential, commercial, and hotel door lock systems, allowing seamless integration with electric actuators, status indicators, and various sensors for smart and secure access management.

Q: Where can I buy the custom smart door lock circuit board in large quantities?

A: You can order directly from the manufacturer in China, with options for distribution, wholesale, or export to suit your specific supply chain needs.

Q: What certifications does the product hold to ensure wireless compliance?

A: The board complies with FCC Part 15, ensuring that its wireless operations meet rigorous international standards for safety and performance.

Q: What special security features are included in the board design?

A: Security features include AES-128/256 encryption support, secure bootloader for firmware, tamper alarm, and EEPROM credential storage with ten-year retention to guard against unauthorized access.

Q: How is the board shipped and what payment methods are accepted?

A: Boards are securely packaged and shipped via freight or express delivery, with flexible payment terms offered for both domestic and international buyers.
