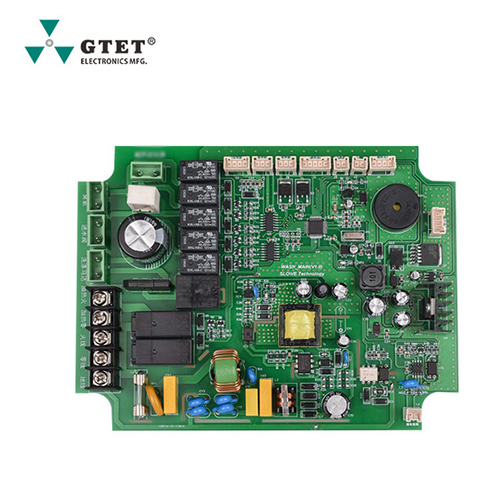

small batch PCBA foundry foundry in the industrial control board

Name: small batch PCBA foundry foundry in the industrial control board
Brand: Shenzhen Dasonghe Trading Co., Ltd.

Get a Price/Quote

MOQ : 100 Pieces

small batch PCBA foundry foundry in the industrial control board Specification

Usage
Small batch industrial automation, prototype control systems, custom machinery control

Display Type
No onboard display (status indication possible with LEDs)

Thermal Conductivity
Standard FR4 PCB substrate (0.3-0.5 W/mK)

Operating Temperature
-20C to +70C

Sensors Specification
Supports standard industrial sensors, analog 0-10V, 4-20mA

Output
Relay, transistor outputs, configurable signal output

IP Rating
PCB only, no enclosure (IP00)

Resolution
12-bit ADC/DAC resolution (if supported)

Power Supply
External DC power via terminal

Input
Digital and analog signal inputs, connector interfaces

Processor Speed
16-72MHz (microcontroller dependent)

Interface
Screw terminal, header pins, optional RS485/RS232/UART

Power Source
External regulated DC power

Features
Custom PCBA, RoHS compliant, small batch manufacturing, rapid prototyping

Response Time
< 2 ms digital switching response

Charging Voltage
Not applicable (direct-powered, non-battery)

Components
Microcontroller, signal relays, terminal blocks, voltage regulators, passive/active components

Product Type
Small Batch PCBA Industrial Control Board

Application
Factory automation, motor control, PLC expansions, sensor interface

Rated Voltage
12V DC (typical, configurable on design)

Supply Voltage
12V / 24V DC (design dependent)

Size
Approx. 100mm x 70mm

Dimension (L*W*H)
100mm x 70mm x 18mm

Function
Industrial control, signal processing, input/output management

Color
Green (PCB solder mask), white silkscreen, metallic finish on components

Weight
Approx. 120g (varies per configuration)

Capacity
Customizable I/O channels, typical 8-32 inputs/outputs

Current Rating
2A max per output channel

Thickness
1.6mm PCB (standard)

Frequency
DC/low-frequency analog signal support, up to 10kHz switching

PCB Material
FR4, RoHS compliant

ESD Protection
Integrated on all I/O channels

Connector Type
Screw terminals, pin headers

OEM/ODM Service
Available

RoHS Status
Compliant

Signal Isolation
Opto-isolated inputs/outputs (optional)

Test/Inspection
100% AOI & functional test

Conformal Coating
Optional for enhanced durability

Surface Finish
HASL or ENIG selectable

Mounting Type
Through-hole, SMD mixed technology

Customizable Options
Connector type, component selection, firmware

Board Layers
2 layers (customizable up to 4)

Production Lead Time
7-15 days typical for small batches

Control Logic
User programmable via ISP/serial

small batch PCBA foundry foundry in the industrial control board Trade Information

Minimum Order Quantity
100 Pieces

Supply Ability
1000 Pieces Per Month

Delivery Time
7 Days

About small batch PCBA foundry foundry in the industrial control board

Discover phenomenal savings in our limited-time Sale on top-rated small batch PCBA foundry services! This redoubtable industrial control board platform features FR4, RoHS compliant material, mixed through-hole/SMD technology, and optional conformal coating for superb durability. With user-programmable logic via ISP/serial and fully customizable connector, firmware, and ESD protection options, you'll enjoy HASL or ENIG surface finishes and opto-isolated I/Os by request. Rapid production-just 7-15 days-delivers meticulously tested, configurable solutions for prototyping, automation, and factory systems. Last chance for premium OEM/ODM customization-act now!

Versatile Usage & Applications for Phenomenal Industrial Control

Our small batch PCBA foundry delivers industrial control boards customized for factory automation, PLC expansion, sensor interfaces, and custom machinery control. With broad input/output compatibility (8-32 channels) and support for digital/analog signals, its superb configurability suits rapid prototyping and tailored solutions for machinery builders, automation teams, or research laboratories. Integrated ESD protection, opto-isolated options, and programmable control logic ensure reliability and flexibility to meet the demands of modern industrial environments.

Certifications, Supply Ability & Premium Payment Terms

Redoubtable commitment to excellence: our PCBA foundry is RoHS compliant, ensuring environmental responsibility and top-tier production standards. Offering dependable supply charges for small batch orders and scalable quantities, we accommodate customized project proposals for OEM/ODM requirements. Secure premium transactions with flexible payment terms, ensuring transparent planning and trusted delivery timelines. Made in China, our factory's professional supply chain maximizes efficiency and minimises lead times for domestic and global customers.

FAQ's of small batch PCBA foundry foundry in the industrial control board:

Q: How can I customize the industrial control PCBA for my application?

A: You can specify connector types, I/O channel counts, component selections, firmware needs, ESD protection, and opto-isolated I/O during your order proposal. Our engineering team works with you to ensure the design aligns with your requirements.

Q: What makes this small batch PCBA redoubtable for industrial use?

A: Our PCBA boards use superb FR4 material, are RoHS compliant, and incorporate quality inspection (100% AOI and functional testing). Optional conformal coating and opto-isolated I/Os enhance reliability for demanding environments.

Q: When is the typical lead time for small batch production?

A: For most small batch customization projects, production lead time is 7-15 days from order confirmation, ensuring rapid prototyping and swift delivery.

Q: Where can these PCBA boards be used most effectively?

A: They excel in factory automation, motor control, PLC expansion, sensor interfacing, and prototype systems-ideal for OEM/ODM applications across diverse industrial settings.

Q: What are the accepted payment terms or proposal amount requirements?

A: We offer premium payment flexibility, including transaction proposals tailored to your project scale. Please contact us for detailed supply charge and proposal arrangements.
