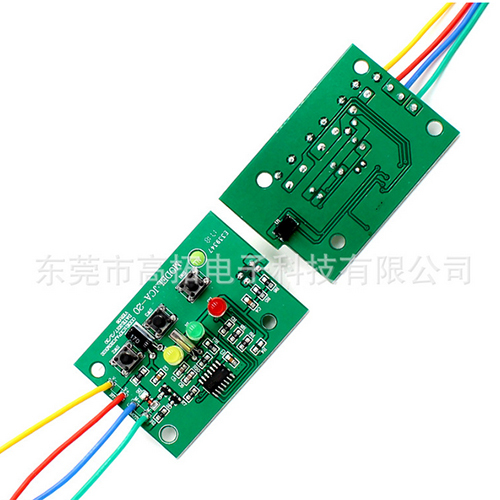

Low-voltage injection molding electronic glue industrial control medical equipment high reliability control circuit board PCBA

Send Inquiry

Request To Call Back

Low-voltage injection molding electronic glue industrial control medical equipment high reliability control circuit board PCBA

Name: Low-voltage injection molding electronic glue industrial control medical equipment high reliability control circuit board PCBA
Brand: Shenzhen Dasonghe Trading Co., Ltd.

Get a Price/Quote

MOQ : 100 Pieces

Low-voltage injection molding electronic glue industrial control medical equipment high reliability control circuit board PCBA Specification

Input
Digital/analog input signals

Components
MCU, power regulator, relays, connectors, passive/active elements

Usage
Control circuit, electronic glue dispensing, process automation

IP Rating
Not rated (depends on final device enclosure)

Sensors Specification
Compatible with standard logic/sensor input (NPN/PNP possible)

Power Supply
DC input

Interface
Screw terminals, header pin, or connector block

Display Type
No display / status LED indicators

Output
Relay and transistor output channels

Processor Speed
Up to 48MHz (depending on MCU)

Response Time
<20ms switching response

Features
Moisture-resistant conformal coating, short-circuit/overload protection, high reliability

Thermal Conductivity
Standard PCB material, moderate dissipation

Power Source
DC powered

Resolution
Digital input/output, typically 8/16-bit MCU logic

Operating Temperature
-20C to +70C

Charging Voltage
Not applicable (not a battery-powered device)

Product Type
PCBA (Printed Circuit Board Assembly)

Application
Industrial control, medical devices, electronic glue machines

Rated Voltage
12V/24V low-voltage operation

Supply Voltage
12/24V DC

Size
Customizable, common range 100mm x 80mm

Dimension (L*W*H)
Approx. 100mm x 80mm x 20mm

Function
High reliability electronic control for industrial/medical equipment

Color
Green (PCB standard) with silver solder pads/components

Weight
Approx. 30-80g (vary by configuration)

Current Rating
2A max per output channel

Capacity
Supports up to 16 I/O channels

Thickness
1.6mm

Frequency
DC/low-frequency control logic

Conformal Coating
Silicone/urethane-based for environmental protection

Connector Type
Pluggable screw terminal, optional JST/Molex for custom interface

RoHS Compliance
Yes

PCB Layer Count
2 layers (can be customized)

Test Points
Integrated for quality control and maintenance

Number of Relays
Typically 2-8 depending on version

PCB Surface Finish
HASL (Hot Air Solder Leveling) or ENIG (Gold)

Protection Features
ESD/surge/over-current protection circuits

Component Tolerance
1%-5% (standard for industrial control)

Lead-Free Process
Yes, suitable for medical/industrial requirements

Mounting Type
Panel or enclosure mount via four corner holes

PCB Material
FR-4 glass epoxy

Fire Retardant Rating
UL94-V0

Low-voltage injection molding electronic glue industrial control medical equipment high reliability control circuit board PCBA Trade Information

Minimum Order Quantity
100 Pieces

Supply Ability
1000 Pieces Per Month

Delivery Time
7 Days

About Low-voltage injection molding electronic glue industrial control medical equipment high reliability control circuit board PCBA

Experience the unbeatable price and unrivaled reliability of our Low-Voltage Injection Molding Electronic Glue Industrial Control Medical Equipment PCBA. Engineered with a classic FR-4 glass epoxy PCB and a robust silicone/urethane conformal coating, this board is invincible against environmental threats. Its modular design supports 2-8 relays, 16 I/O channels, and quick panel mounting, making it popular for process automation and medical devices. RoHS compliant, UL94-V0 fire retardant, with advanced protection circuits and customizable configuration-get it now for superior performance and safety.

Exceptional Features for Advanced Industrial and Medical Control

Designed for critical control in electronic glue dispensing, process automation, and medical equipment, this control circuit board PCBA features digital/analog signal compatibility, pluggable screw terminals, and robust MCU logic-delivering high reliability. The conformal coating provides moisture resistance, while protection circuitry ensures performance under demanding conditions. Suitable for both panel and enclosure mounting, its type of usage includes industrial control, medical devices, and specialized electronic glue machinery, making it adaptable to varying application media and operational demands.

Supply Chain Strength: Certifications and Global Exporting

This invincible PCBA is dispatched promptly, with flexible freight options to meet international standards. Secure packaging ensures integrity during shipping. Certified to RoHS and UL94-V0 standards, our products are recognized by global industrial and medical markets. Exported mainly to Europe, North America, and Asia, we guarantee supply ability for bulk orders and custom sizes. As a trusted exporter, manufacturer, and distributor in China, we maintain a strong presence in the world's main export markets.

FAQ's of Low-voltage injection molding electronic glue industrial control medical equipment high reliability control circuit board PCBA:

Q: How is the control circuit board PCBA typically used in industrial and medical environments?

A: This PCBA is primarily used for controlling industrial automation processes, electronic glue dispensing systems, and critical functions in medical devices, thanks to its high reliability, relay channels, and robust digital/analog interface compatibility.

Q: What benefits does the conformal coating offer for this product?

A: The silicone/urethane-based conformal coating ensures moisture resistance and environmental protection, safeguarding sensitive electronics from dust, humidity, and chemical exposure, ultimately enhancing the board's operational longevity.

Q: Where can this PCBA be mounted, and what mounting options are available?

A: The circuit board is designed for panel or enclosure mounting using four corner holes, making it compatible with a variety of industrial and medical control cabinet configurations.

Q: What certifications does the control circuit board PCBA comply with?

A: This product complies with RoHS requirements for hazardous substance restrictions and achieves a UL94-V0 fire retardant rating, certifying its suitability for high-safety application environments.

Q: When should I consider customizing the board's configuration?

A: Customization is ideal for applications requiring a specific relay count, I/O channels, connector types, or board dimensions. This flexibility allows integration into diverse automation or medical systems.
