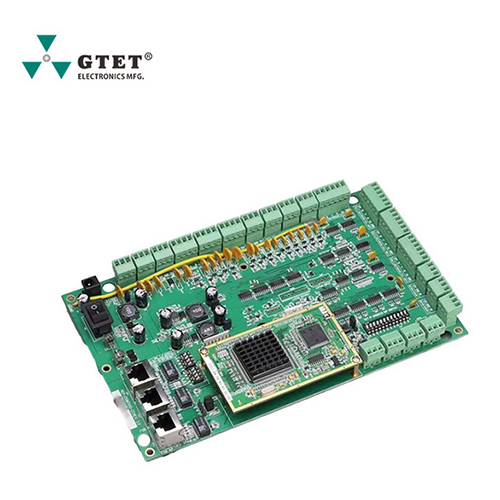

Custom hemodialysis machine control board PCBA

Send Inquiry

Request To Call Back

Custom hemodialysis machine control board PCBA

Name: Custom hemodialysis machine control board PCBA
Brand: Shenzhen Dasonghe Trading Co., Ltd.

Get a Price/Quote

MOQ : 100 Pieces

Custom hemodialysis machine control board PCBA Specification

Processor Speed
24 MHz (microcontroller)

Sensors Specification
Compatible with medical-grade temperature, pressure, and flow sensors

Operating Temperature
0C to +70C

Charging Voltage
Not applicable (powered by supply)

Power Source
External DC supply

Interface
RS232, UART, I2C, SPI, digital and analog I/O

Output
Relay, digital and analog signal outputs

Usage
Hemodialysis equipment integration

Response Time
Real-time control (interrupt response <1ms)

Power Supply
External regulated power supply

Components
Microcontroller, onboard sensors, power management ICs, relays, connectors

Display Type
Supports external LCD/LED display modules

IP Rating
None (PCB-level assembly)

Input
Multi-sensor inputs (pressure, temperature, fluid flow)

Thermal Conductivity
High-grade PCB material for medical application

Resolution
Supports sensor data resolution up to 12-bit ADC

Features
Custom firmware support, high reliability, medical compliance

Product Type
Custom medical PCBA

Application
Medical device electronics (hemodialysis)

Rated Voltage
12V DC

Supply Voltage
12V DC nominal

Size
Custom/OEM per machine design

Dimension (L*W*H)
160mm x 100mm x 1.6mm (example reference)

Function
Controls and monitors operations of hemodialysis machines

Color
Green (PCB standard)

Weight
Approximately 158g

Capacity
Optimized for single-dialysis machine control

Thickness
1.6mm

Current Rating
Up to 2A

Frequency
Operating clock up to 24 MHz

Connector Type
Molex and standard pin headers

Board Finish
ENIG (Electroless Nickel Immersion Gold)

Compliance
ISO 13485, RoHS

PCB Material
FR-4, Medical-grade

Mounting type
Through-hole and surface mount

Firmware Update
In-system programming supported

Protection
Overvoltage and ESD protected

QC Process
Automated optical inspection (AOI) and functional test

PCB Layer count
Four-layer PCB for signal integrity and stability

Signal Isolation
Opto-isolators on input channels

Custom hemodialysis machine control board PCBA Trade Information

Minimum Order Quantity
100 Pieces

Supply Ability
1000 Pieces Per Month

Delivery Time
7 Days

About Custom hemodialysis machine control board PCBA

Unveil excellence in hemodialysis technology with our custom control board PCBA-a new release at a reduced price. Engineered with a champion four-layer PCB, this highly decorated board ensures signal integrity and stable performance. Boasting inestimable value, each board is medical-grade and ISO 13485 & RoHS compliant. Featuring through-hole and surface mount capabilities, ENIG finish, opto-isolated inputs, and real-time control (interrupt response <1ms), it supports in-system firmware updates. Trusted by manufacturers, exporters, and service providers worldwide, this innovative board sets the standard for reliable, custom hemodialysis equipment integration.

Precision Integration for Medical Devices

Our custom hemodialysis machine control board PCBA is purpose-built for medical device electronics, specifically designed for direct integration into hemodialysis equipment. Its application surface covers the internal electronics compartment, where it meticulously manages and monitors critical machine operations. This board orchestrates multi-sensor data-including pressure, temperature, and fluid flow-across custom-sized layouts, making it indispensable for optimized, single-dialysis machine functionality in demanding healthcare environments.

Flexible Payment Terms and Supply Capacity

We support flexible payment terms, recognizing purchase orders and negotiating rate or asking price with ease. Our FOB port is conveniently located in China, streamlining international transactions for global clients. We pride ourselves on our robust supply ability-capable of fulfilling both small and large batch orders to accommodate retailers, wholesalers, and medical equipment manufacturers alike. Contact us to discuss tailored pricing, payment schedules, and ongoing supply commitments for your organization.

FAQ's of Custom hemodialysis machine control board PCBA:

Q: How does the custom control board PCBA enhance hemodialysis machine reliability?

A: The board features a multi-layer PCB with dedicated signal isolation and medical-grade materials, ensuring real-time, reliable machine control and consistent monitoring for patient safety.

Q: What specific applications does this control board serve?

A: It is tailored for integration within hemodialysis machines, controlling and monitoring key operational duties such as pressure, temperature, and fluid flow, meeting critical requirements in medical environments.

Q: When is it best to consider a custom order for this product?

A: Custom orders are ideal for manufacturers or healthcare providers seeking to match unique machine dimensions or achieve inestimable operational efficiencies specific to their equipment models.

Q: Where do you supply and ship the control board PCBA from?

A: All products are shipped FOB from China, leveraging a reliable logistics network to export internationally and supply clients across multiple regions.

Q: What is the process for updating the board's firmware?

A: Firmware updates are supported via in-system programming, allowing secure and swift upgrades without removing the board from its host equipment.

Q: How does the payment process work for bulk orders?

A: After confirming your purchase order, we discuss rate details and asking price, and coordinate payment terms to ensure a seamless transaction for bulk or recurring supply.
