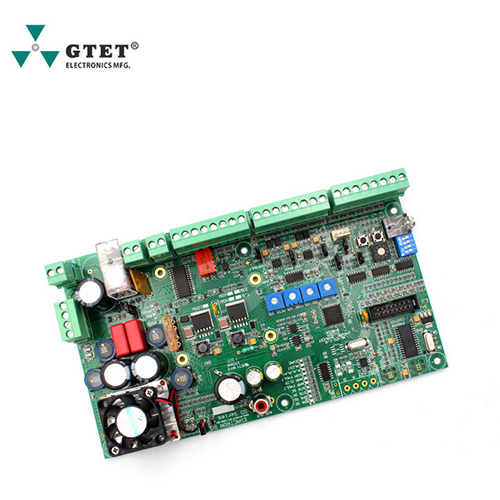

Intelligent access control system control board smart gate motherboard SMT patch processing PCBA foundry

Send Inquiry

Request To Call Back

Intelligent access control system control board smart gate motherboard SMT patch processing PCBA foundry

Name: Intelligent access control system control board smart gate motherboard SMT patch processing PCBA foundry
Brand: Shenzhen Dasonghe Trading Co., Ltd.

Get a Price/Quote

MOQ : 100 Pieces

Intelligent access control system control board smart gate motherboard SMT patch processing PCBA foundry Specification

Usage
Smart gate, access control systems, entry/exit automation

Sensors Specification
Supports external door sensors, magnetic contact, infrared

Components
Microcontroller, relays, connectors, terminal blocks, indicator LEDs, SMT chips

Input
Card reader, fingerprint, password keypad, door sensor, push button

Power Source
External DC adapter or central security PSU

Processor Speed
32-bit MCU, 100 MHz

Interface
RS485, Wiegand, TCP/IP (optional module)

Display Type
LED status indicators (on board)

IP Rating
IP20 (PCB level, casing dependent)

Thermal Conductivity
Standard FR-4, 0.25 W/mK

Response Time
< 300 ms

Output
Relay output, door lock control, alarm

Operating Temperature
-20C to +70C

Features
Anti-tamper, real-time monitoring, SMT high-reliability, customizable firmware

Power Supply
DC power/battery backup optional

Charging Voltage
N/A (board itself does not charge, accessory dependent)

Product Type
Access Control System Control Board (PCBA)

Application
Intelligent entrances, building security, offices, industrial park

Rated Voltage
12-24V DC

Supply Voltage
12V or 24V (Selectable)

Size
Standard 120mm x 80mm board

Dimension (L*W*H)
120 x 80 x 18 mm

Function
Intelligent access control, smart gate management, security control

Color
Green PCB, Mixed-color electronic components

Weight
Approx. 150 grams

Thickness
1.6 mm PCB

Capacity
Supports up to 10,000 users/cards

Current Rating
Max 2A

Frequency
Operating at 50/60 Hz systems

Connectivity
Networking capable, supports LAN expansion

Manufacturing Process
Professional SMT patch, PCB wave soldering, AOI inspection

Humidity Range
10% ~ 95% RH (non-condensing)

Relay Output Rating
Max AC 250V 5A/ DC 30V 5A

PCB Type
FR-4, double-layer SMT

OEM/ODM Availability
Custom design and batch manufacturing supported

Life Expectancy
>100,000 cycles relay switching

Mounting Method
Wall or DIN rail mount

Firmware Update
JTAG/ISP/USB supported

Protection
Reverse polarity protection, static protection, overcurrent protection

RoHS Compliance
Yes

Data Storage
EEPROM, supports data backup

Intelligent access control system control board smart gate motherboard SMT patch processing PCBA foundry Trade Information

Minimum Order Quantity
100 Pieces

Supply Ability
1000 Pieces Per Month

Delivery Time
7 Days

About Intelligent access control system control board smart gate motherboard SMT patch processing PCBA foundry

Explore unrivaled performance with our Intelligent Access Control System Control Board, now at a reduced price in our clearance event. Crafted with sterling engineering, this smart gate motherboard features professional SMT patch processing and state-of-the-art PCBA foundry standards. With robust relay outputs, triumphant real-time monitoring, and customizable firmware, it easily mounts on walls or DIN rails. Networking-capable, RoHS compliant, and supported by reverse polarity and static protection, it's engineered for longevity with over 100,000 relay cycles. OEM/ODM orders welcome. Ensure secure, intelligent entry-make the smart choice today!

Comprehensive Solution for Modern Access Control

This intelligent control board is ideal for applications in smart gates, building security, industrial parks, and offices. Its advanced features include real-time monitoring, robust relay outputs, and compatibility with card readers, fingerprint modules, and door sensors. Wall or DIN rail mountable, it is suitable for streamlined entry/exit automation. Direction of use is simple-connect the required peripherals, power up, and configure via network for seamless, secure access management in various environments.

Efficient Packaging, Reliable Dispatch, and Certifications

Each control board is bundled securely for maximum protection and efficient handover. Take advantage of market value offers and quick dispatch for large or small orders. Our products are RoHS compliant, inspected with AOI, and meet international standards. Payment terms are flexible, providing confidence for buyers seeking exporters, wholesalers, and dealers worldwide. With our streamlined shipping and certification process, expect prompt fulfillment and peace of mind with every purchase.

FAQ's of Intelligent access control system control board smart gate motherboard SMT patch processing PCBA foundry:

Q: How do I mount the intelligent access control system control board?

A: The control board can be easily mounted either on a wall or a standard DIN rail, offering flexibility depending on your installation requirements.

Q: What application areas are best suited for this smart gate motherboard?

A: This system is ideal for building security, offices, industrial parks, intelligent entrances, and various access control scenarios requiring smart automation and reliable credential management.

Q: How is data securely stored and backed up on this board?

A: The board utilizes EEPROM for data storage, ensuring user data and configurations are safely retained, with built-in support for regular data backup processes.

Q: What certifications and safety features does the product offer?

A: It is RoHS compliant and undergoes professional SMT processing, PCB wave soldering, and AOI inspection for quality. There are multiple protections including reverse polarity, static protection, and overcurrent safeguards.
