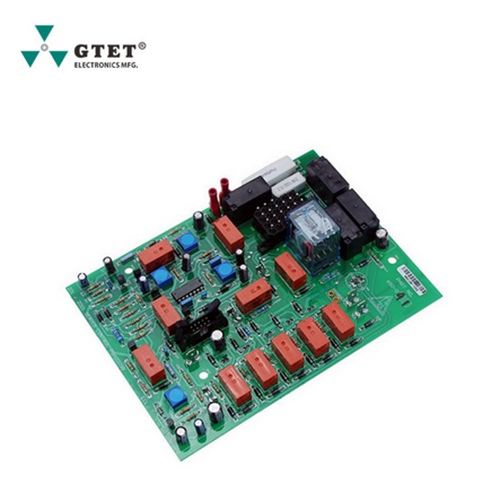

Wind turbine circuit board power manager control board professional PCBA

Name: Wind turbine circuit board power manager control board professional PCBA
Brand: Shenzhen Dasonghe Trading Co., Ltd.

Get a Price/Quote

MOQ : 100 Pieces

Wind turbine circuit board power manager control board professional PCBA Specification

Operating Temperature
-20C to 60C

Usage
Wind turbine circuit power regulation and monitoring

Charging Voltage
Selectable, 12V or 24V charging

Power Supply
External DC input or wind turbine generator

Response Time
<10 ms system response

Output
Stable DC for battery charging or load

Power Source
Wind turbine generator/external DC adapter

Sensors Specification
Integrated voltage and current monitoring sensors

Features
Overcurrent, overvoltage, and short-circuit protection; automatic system regulation; modular design

IP Rating
IP20

Display Type
LED indicator (system status, fault)

Processor Speed
Integrated microcontroller, 16 MHz

Components
High-quality SMD resistors, capacitors, diodes, microcontroller, connectors, MOSFETs

Interface
Terminal block, UART/debug header

Thermal Conductivity
High thermal efficiency with copper layer

Input
Wind turbine output DC

Product Type
PCBA (Printed Circuit Board Assembly)

Application
Wind energy systems and small to medium wind power projects

Rated Voltage
12V / 24V DC (Customizable)

Supply Voltage
12V / 24V (Selectable)

Size
Standard: 100mm x 80mm (Custom sizes available)

Dimension (L*W*H)
100mm x 80mm x 25mm

Function
Power management and control for wind turbine systems

Color
Green

Weight
Approx. 80g

Thickness
1.6 mm

Capacity
10A continuous current handling

Current Rating
Up to 10A

Frequency
DC application (0 Hz)

PCB Surface Finish
HASL (Hot Air Solder Leveling)

Life Span
>50,000 hours under standard operation

RoHS Compliance
Yes

Connector Type
Screw terminal / custom as needed

Isolation
Galvanic isolation between input and output

Mounting Type
Screw/bolt mountable holes

Humidity Range
5%-90% RH, non-condensing

Control Algorithm
MPPT (Maximum Power Point Tracking) compatible

PCB Material
FR4 high-grade epoxy

Conformal Coating
Optional for humidity resistance

Communication Protocol
UART/TTL optional

Layer Count
2-layers PCB

Wind turbine circuit board power manager control board professional PCBA Trade Information

Minimum Order Quantity
100 Pieces

Supply Ability
1000 Pieces Per Month

Delivery Time
7 Days

About Wind turbine circuit board power manager control board professional PCBA

Procure a sterling solution for wind energy management with our Wind Turbine Circuit Board Power Manager Control Board, designed for superior performance in challenging environments. This uncommon professional PCBA features robust FR4 high-grade epoxy, dual-layer design, and advanced MPPT algorithm compatibility, ensuring stellar power regulation and monitoring. With galvanic isolation, superior protection features (overcurrent, overvoltage, short-circuit), and custom connection options, it perfectly serves as a cornerstone for small and medium wind power projects. Enjoy reduced price offers when you order in wholesale quantities, directly from China's trusted manufacturer, supplier, and exporter network.

Professional Operation & Versatile Application

For optimal use, install the board with screw or bolt mountable holes, ensuring reliable fixation in wind energy systems. Primary application areas include power regulation and monitoring for small to medium wind power installations. Key features of this machine comprise high thermal efficiency, fast system response, automatic regulation, and rich protection mechanisms, making it ideal for wind turbine dealers, installers, and system fabricators seeking dependable power management.

Certifications, Samples & Delivery Timeframe

Fully RoHS compliant, this power manager board is rigorously produced to meet international quality standards. Samples are available upon request for initial evaluation-simply charge the corresponding sampling fee. Estimate order processing and standard delivery times based on production quantities, with average lead time ranging from 7 to 21 days. Our streamlined process ensures prompt shipment and reliable support throughout your procurement experience.

FAQ's of Wind turbine circuit board power manager control board professional PCBA:

Q: How does the wind turbine circuit board power manager control board improve system efficiency?

A: The board utilizes an MPPT-compatible control algorithm to maximize power extraction from wind turbines, ensuring efficient energy conversion and stable battery charging or load supply.

Q: What applications are best suited for this professional PCBA?

A: It is ideal for wind power projects, particularly small to medium-size systems requiring efficient power regulation, monitoring, and protection in both on-grid and off-grid setups.

Q: When is conformal coating recommended for this product?

A: Conformal coating is advised when installations occur in high-humidity environments (5%-90% RH non-condensing) to protect circuitry from moisture and prolong operational life.

Q: Where can the control board be sourced and what are the ordering options?

A: This product is supplied directly from China and is available through dealers, distributors, exporters, manufacturers, and wholesalers. Quantity-based reduced pricing is available on bulk orders.

Q: What features ensure safety and reliability in operation?

A: The board offers overcurrent, overvoltage, and short-circuit protection, along with galvanic isolation, integrated system monitoring sensors, and LED status indicators to guarantee reliable and safe operation.
