New energy photovoltaic inverter development PCB electronic assembly small batch custom PCBA

Send Inquiry

Request To Call Back

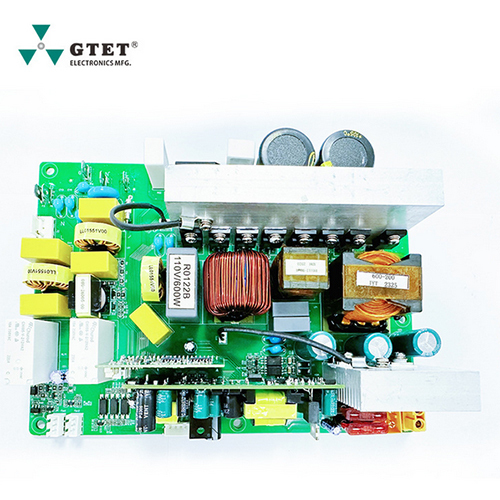

New energy photovoltaic inverter development PCB electronic assembly small batch custom PCBA

Name: New energy photovoltaic inverter development PCB electronic assembly small batch custom PCBA
Brand: Shenzhen Dasonghe Trading Co., Ltd.

Get a Price/Quote

MOQ : 100 Pieces

New energy photovoltaic inverter development PCB electronic assembly small batch custom PCBA Specification

Input
Photovoltaic DC input from solar panels

Output
AC output, customizable (single-phase/three-phase)

Charging Voltage
Compatible with system design, typically up to 1000V DC

Power Source
Solar DC, AC grid, or hybrid

Processor Speed
Up to 120MHz (based on microcontroller selection)

Usage
Solar photovoltaic energy systems, inverter development and prototypes

IP Rating
IP20 (open type assembly, enclosure dependent)

Operating Temperature
-40C to +85C

Thermal Conductivity
1.0-2.0 W/mK (PCB material spec)

Resolution
N/A (Not applicable to PCB assembly)

Display Type
Optional onboard digital display for status/feedback

Response Time
<2ms (control circuit response)

Components
Microcontroller, MOSFETs, capacitors, industrial relays, IGBTs, connectors, sensors

Sensors Specification
Support for voltage, current, temperature sensors

Features
Customizable layout, rapid prototyping, RoHS compliance, small batch support

Interface
RS485, CAN, UART, Ethernet (as per design)

Power Supply
DC/AC input depending on inverter design

Product Type
Custom PCBA (Printed Circuit Board Assembly)

Application
Photovoltaic inverter, new energy, solar power systems

Rated Voltage
DC 12-1000V (customizable based on requirements)

Supply Voltage
DC 12V/24V/48V/96V/220V options

Size
Custom sizes accepted, standard example 100mm x 120mm

Dimension (L*W*H)
Typically 100 x 120 x 18mm (customizable)

Function
Photovoltaic inverter PCB assembly for solar energy power conversion and management

Color
Green (PCB standard) with various electronic component colors

Weight
150g - 450g (based on design and component population)

Capacity
Supports up to 10-50A (depending on design)

Thickness
1.6mm (customizable)

Current Rating
10A - 50A (as per requirements)

Frequency
50Hz/60Hz configurable

Connector Type
Custom terminal block, screw or plug-in

Layer Count
2, 4, or 6 layer PCB options

Mounting Hole Diameter
3.2mm standard (customizable)

ESD Protection
Integrated ESD components on request

Testing Service
X-ray, AOI, ICT, functional test available

Assembly Type
SMT and through-hole mixed

Surface Finish
HASL, ENIG, or OSP

Batch Size
1-500 pcs for small batch orders

PCB Material
FR4 high-temperature epoxy resin

Firmware
Microcontroller pre-loaded and programmable

Manufacturing Lead Time
7-15 days for small batches

Quality Standard
IPC-A-610 Class II/III

Environmental Compliance
Halogen free (on request)

Certificates
CE, RoHS, ISO9001 compliant

RoHS Compliance
Yes, lead-free soldering used

New energy photovoltaic inverter development PCB electronic assembly small batch custom PCBA Trade Information

Minimum Order Quantity
100 Pieces

Supply Ability
1000 Pieces Per Month

Delivery Time
7 Days

About New energy photovoltaic inverter development PCB electronic assembly small batch custom PCBA

Experience the monumental advancement in photovoltaic inverter technology with our fresh, scarce small batch custom PCBA solutions-order today to secure your innovative edge. Offering majestic reliability, our PCBs are constructed using enlightened FR4 high-temperature epoxy resin and available in 2, 4, or 6 layers. Featuring precision SMT and through-hole assembly, each unit meets IPC-A-610 Class II/III standards and undergoes rigorous X-ray, AOI, and functional testing. Suitable for inverter development and solar power applications, these certified, RoHS-compliant assemblies support rapid prototyping and full customizability for dynamic energy needs.

Competitive Advantages and Application Spectrum

Our new energy photovoltaic inverter PCBA offers superior flexibility with customizable layouts, robust voltage and current support, and reliable SMT plus through-hole assembly. Designed for solar power conversion and smart energy management, this product meets stringent IPC standards, with optional ESD protection and a rapid turnaround of 7-15 days. Ideal for inverter R&D labs, solar power installations, and engineering teams seeking small batch manufacturing for prototyping or niche energy conversion solutions.

Sample, Domestic and International Market Coverage

Sample units are readily available to facilitate low expenditure during early development phases, delivered in secure packaging for safe transit. We ensure timely order completion for clients across major domestic regions as well as key export markets. Our professional supply chain guarantees consistent quality whether for a domestic firm, exporter, or global distributor. Place your order today and streamline your inverter assembly process with our proven, certified, and customizable PCBA solutions.

FAQ's of New energy photovoltaic inverter development PCB electronic assembly small batch custom PCBA:

Q: How do I place a small batch order for a custom PCBA for photovoltaic inverter development?

A: You can submit your design specifications and required batch size (1-500 pcs) online or contact our sales team directly. We'll guide you through the order process, including material, layer, and connector choices tailored to your application.

Q: What testing and quality assurance processes are implemented?

A: Every assembly undergoes X-ray, AOI, ICT, and functional tests, adhering to IPC-A-610 Class II/III standards, ensuring excellent performance and quality in each batch.

Q: Where is this PCBA suitable for use?

A: These assemblies are ideal for solar photovoltaic inverter prototypes, power management in new energy systems, R&D projects, and renewable energy installations requiring robust, customizable electronics.

Q: What are the main benefits of using your small batch custom PCBA services?

A: Clients benefit from customizability, fast manufacturing (7-15 days for small lots), robust certification (CE, RoHS, ISO9001), and adaptable interfaces for solar and energy management applications.

Q: When should I expect order completion and delivery?

A: Samples and small batch PCBA orders are typically completed and shipped within 7-15 business days, depending on the design complexity and customization requested.

Q: How is the packaging handled for the assembled PCBAs?

A: PCBAs are securely packaged to prevent ESD and physical damage during transit, ensuring reliable delivery to both domestic and international clients.
