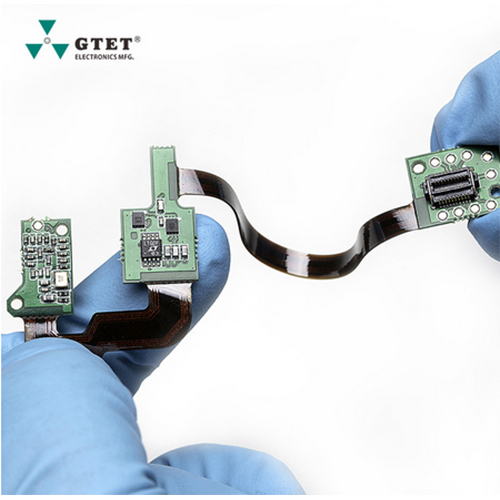

Ultra-thin FPC soft board multi-layer flexible circuit board

Send Inquiry

Request To Call Back

Ultra-thin FPC soft board multi-layer flexible circuit board

Name: Ultra-thin FPC soft board multi-layer flexible circuit board
Brand: Shenzhen Dasonghe Trading Co., Ltd.

Get a Price/Quote

MOQ : 100 Pieces

Ultra-thin FPC soft board multi-layer flexible circuit board Specification

Components
Polyimide substrate, copper foil, adhesive, protective overlay film

Power Source
Not applicable (passes signals/power)

Features
Ultra-thin design, high flexibility, supports complex shapes, light weight, multi-layer construction

Usage
Flexible electronics; high-density mounting; wearable devices; mobile devices

Input
Signal and power traces per design

Operating Temperature
-40C to +85C

Output
Signal and power transfer pathways

Thermal Conductivity
0.12-0.35 W/mK (polyimide base material)

Power Supply
Not applicable (passive interconnect board)

Resolution
Trace/space down to 0.05mm

Interface
Solder pad, connector interface, or ZIF contacts

IP Rating
None (depends on system integration)

Product Type
Multi-layer Flexible Printed Circuit (FPC) Soft Board

Application
Consumer electronics, medical devices, automotive electronics, telecommunications equipment

Rated Voltage
30V DC

Supply Voltage
30V DC max

Size
Customizable; standard as per requirement

Dimension (L*W*H)
Customized (example: 100mm x 50mm x 0.2mm)

Function
Provides flexible interconnection for electronic devices; supports dynamic bending and complex routing

Color
Amber (base polyimide film) with gold/copper traces

Weight
Ultra-lightweight; typically less than 10g (varies with dimension)

Capacity
Supports multilayer signal and power routing

Current Rating
0.5A to 2A (trace width and copper thickness dependent)

Thickness
0.1mm to 0.2mm (Ultra-thin)

Frequency
Up to GHz range depending on trace design

MOQ
1 piece or as per order

Flame Retardant Rating
UL94V-0

Peel Strength
>1.0 N/mm

Bending Radius
Minimum 0.5mm (depends on thickness and design)

Surface Adhesion
High; suitable for high-density mounting

Layer Count
2 to 10 layers (customized multi-layer)

Insulation Resistance
>100 M @ 500V DC

Production Standard
IPC 6013 Class 2/3 (on request)

Packing Method
Vacuum sealed, anti-static packaging

RoHS Compliance
Yes

Base Material
High-quality polyimide (PI) film

Halogen Free
Available upon request

Surface Finish
ENIG (Electroless Nickel Immersion Gold) or OSP

Copper Thickness
1/3 oz to 2 oz (customizable)

Lead Time
5-15 working days depending on order

Connector Type
Custom exposed pad, ZIF, or board-to-board connectors

Test Method
100% E-test for open/short circuits

Ultra-thin FPC soft board multi-layer flexible circuit board Trade Information

Minimum Order Quantity
100 Pieces

Supply Ability
1000 Pieces Per Month

Delivery Time
7 Days

About Ultra-thin FPC soft board multi-layer flexible circuit board

Experience top-notch flexibility and superlative performance with our Ultra-thin FPC soft board multi-layer flexible circuit board, crafted with high-quality polyimide (PI) film for unbeatable reliability. Designed for high-density mounting in wearable, medical, and mobile electronics, this crackerjack product features customizable dimensions, copper thickness, and layer count, allowing you to personalise for any application. With popular surface finishes like ENIG or OSP, RoHS compliance, and available halogen-free options, this board ensures exceptional signal and power transfer with a remarkably lightweight and ultra-thin profile. Markdown your projects with industry-leading standards and durability.

Versatile Usage & Advanced Applications

The Ultra-thin FPC soft board flexible circuit board is crafted to serve dynamic and demanding sectors including consumer electronics, automotive systems, telecommunications, and healthcare devices. Its ultra-thin, lightweight, and highly flexible structure enables top-tier performance in compact and intricate assemblies. Application methods embrace high-density mounting, dynamic bending, and integration into devices requiring complex routing. Easily personalize configuration and design to match application needs, supporting reliable signal and power transmission across multiple layers and custom shapes.

Global Markets, Trusted Certification & Sample Processing

Our Ultra-thin FPC soft boards are widely exported to key global markets such as North America, Europe, and Asia. All products adhere to renowned certifications like UL94V-0 and IPC 6013 Class 2/3 (upon request), ensuring superior product integrity. Samples are available for qualification before large purchase orders. Fast order processing and secure goods transport are prioritized for all shipments. We serve dealers, distributors, retailers, and more-making every aspect of procurement efficient for your business needs.

FAQ's of Ultra-thin FPC soft board multi-layer flexible circuit board:

Q: How can the Ultra-thin FPC soft board be personalized for specific projects?

A: You can personalise the board's size, layer count, copper thickness, and connector type to match your exact design, allowing for maximum flexibility in application-specific projects.

Q: What are the main benefits of using a multi-layer flexible circuit board?

A: Multi-layer FPCs offer excellent space-saving, superior flexibility, high-density routing capability, lightweight construction, and reliable performance in dynamic or complex assemblies such as wearables and mobile devices.

Q: Where is this flexible circuit board most commonly used?

A: Our ultra-thin FPC soft boards are popular in consumer electronics, medical devices, automotive electronics, and telecommunications due to their reliability, adaptability, and high-frequency support.

Q: What certifications does the board come with?

A: The boards comply with RoHS standards, can be produced halogen-free on request, and are manufactured to IPC 6013 Class 2/3 and UL94V-0 flame retardancy certification upon request.

Q: What is the process if I wish to request a sample before placing a purchase order?

A: Simply contact us with your requirements for samples. After confirming specifications and order processing details, we'll arrange for efficient sample delivery so you can evaluate product quality.

Q: How does order processing and goods transport work for export markets?

A: We ensure efficient order processing, secure anti-static vacuum packing, and reliable goods transport to all main export markets. Detailed goods status and shipment tracking are provided for large purchase orders.
