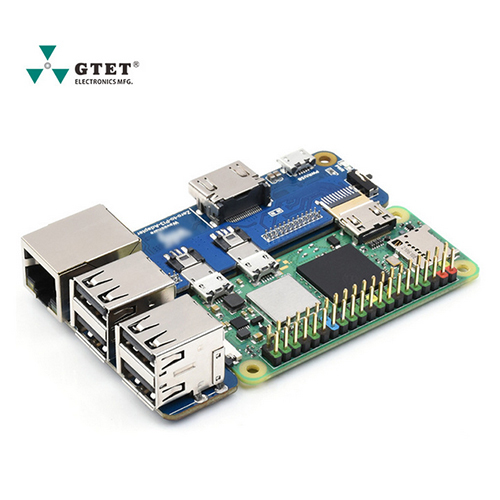

Raspberry Pi industrial board board odm motherboard development SMT patch

Name: Raspberry Pi industrial board board odm motherboard development SMT patch
Brand: Shenzhen Dasonghe Trading Co., Ltd.

Get a Price/Quote

MOQ : 100 Pieces

Raspberry Pi industrial board board odm motherboard development SMT patch Specification

Processor Speed
1.5GHz Quad-core ARM Cortex-A72 (typical)

Components
SoC, RAM, Flash Storage, Connectors, Power ICs

Power Supply
USB/Direct DC Input

Power Source
5V DC Input via USB-C/Micro-USB

Operating Temperature
-20C to +70C

Thermal Conductivity
Supports Heatsink/Fan for Thermal Management

Features
SMT Patch Assembly, ODM/OEM Customization, Industrial Grade, Multiple Connectivity Interfaces

Resolution
Supports up to 4K HDMI output

Display Type
HDMI Output

Output
HDMI, GPIO, USB

Sensors Specification
Supports external sensors via GPIO/I2C

Response Time
N/A (not applicable)

Interface
HDMI, USB 2.0/3.0, Ethernet, Audio, GPIO, CSI, DSI

Input
GPIO, USB, UART, SPI, I2C

Usage
Industrial Automation, Prototype Development, Educational Projects

Product Type
Single Board Computer, Industrial Motherboard

Application
Industrial Control, Machine Vision, Data Acquisition

Rated Voltage
5V DC

Supply Voltage
5V DC

Size
Standard Raspberry Pi Form Factor

Dimension (L*W*H)
85mm x 56mm x 17mm

Function
Embedded Computing, IoT Applications, Edge Processing

Color
Green

Weight
Approx 60g

Current Rating
Up to 2.5A

Capacity
Up to 4GB RAM (Depending on Model)

Thickness
1.6 mm (PCB Thickness)

Frequency
1.2GHz - 1.8GHz (Model dependent)

Board Material
FR-4 Glass Epoxy

Expansion Slots
40-pin GPIO header, Camera Serial Interface (CSI), Display Serial Interface (DSI)

Power Management
Onboard voltage regulation and protection circuits

MTBF
> 30,000 hours

Customization
ODM/OEM Supported including silk screen/logos/circuit design

Storage
MicroSD card slot, eMMC (optional for customization)

RAM
DDR4/LPDDR4, up to 4GB

Graphics
Broadcom VideoCore VI, OpenGL ES 3.0 support

Networking
10/100/1000 Ethernet, Onboard WiFi (optional), Bluetooth (optional)

Processor
Broadcom BCM2711 or similar (based on ODM requirements)

Compliance
RoHS, CE, FCC (certification can be provided)

Manufacturing Process
SMT Automated Patch, Lead-Free Soldering

USB Ports
Up to 4x USB (2x USB 3.0, 2x USB 2.0, model dependent)

Raspberry Pi industrial board board odm motherboard development SMT patch Trade Information

Minimum Order Quantity
100 Pieces

Supply Ability
1000 Pieces Per Month

Delivery Time
7 Days

About Raspberry Pi industrial board board odm motherboard development SMT patch

Procure the splendid Raspberry Pi industrial board-highlighted for its top-rated ODM motherboard development and innovative SMT patch assembly. This incomparably versatile board is equipped with a lustrous Broadcom BCM2711 processor, up to 4GB DDR4/LPDDR4 RAM, flexible storage options, and robust networking features including gigabit Ethernet and optional onboard WiFi/Bluetooth. Designed using FR-4 glass epoxy, lead-free SMT automated patching, and a standard Pi form factor, it supports 4K HDMI output, industrial-grade reliability, and customized ODM/OEM solutions for dealers, suppliers, and manufacturers across the globe.

Application and Material Advantages

The Raspberry Pi Industrial Board excels in a variety of application surfaces, including embedded computing, edge processing, and IoT automation. Its board design, constructed with FR-4 glass epoxy, ensures longevity and dependable performance in demanding industrial, educational, and machine vision settings. Material features such as robust thermal support and 40-pin GPIO expansion make it ideal for data acquisition and rapid prototyping, offering splendid adaptability for diverse operational sites and project requirements.

Delivery Time, Certifications & Export Markets

Order completion is streamlined with premium processing timelines, delivering your ODM/OEM Raspberry Pi industrial boards swiftly to global destinations. Certified to meet RoHS, CE, and FCC standards, these boards guarantee assured quality for every shipment. Via trusted transport services, your orders are handled with care for timely international delivery, making them ideal for major export markets including North America, Europe, Southeast Asia, and beyond. Reliable delivery and stringent certifications highlight our global service commitment.

FAQ's of Raspberry Pi industrial board board odm motherboard development SMT patch:

Q: How is the SMT patch process applied to the Raspberry Pi industrial board?

A: The SMT (Surface Mount Technology) patch process involves automated placement of components such as processors, memory, and connectors on the FR-4 glass epoxy board, ensuring high precision and reliability in finished motherboards.

Q: What customizable options are available for ODM or OEM orders?

A: You can request customization of processor type, RAM capacity (up to 4GB), storage modules (eMMC or MicroSD), onboard networking, and branding elements like silk screen, logos, and even tailored circuit design according to your requirements.

Q: When can I expect delivery after order completion?

A: Delivery times depend on order size and customization requirements, but our premium logistics partners aim to complete and transport orders efficiently, typically within weeks, ensuring fast and reliable shipment to your location.

Q: What applications benefit most from this industrial board?

A: This board is ideal for industrial control, automated data acquisition, machine vision, embedded IoT solutions, prototype development, and educational projects requiring durable, high-performance platforms.

Q: Where can the Raspberry Pi industrial board be deployed?

A: Thanks to its robust design and wide operating temperature range, the board is suitable for varied sites-from manufacturing plants and smart factories to research labs and educational institutions.

Q: How do certifications assure product quality?

A: Each ODM/OEM Raspberry Pi Industrial Board is manufactured to comply with RoHS, CE, and FCC standards, ensuring premium electrical safety, environmental compliance, and trustworthy operation in all supported markets.
