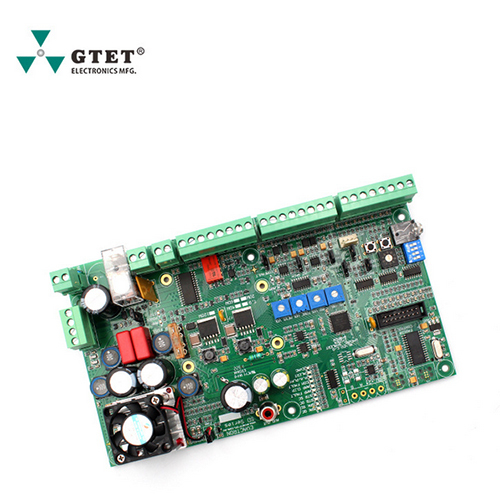

Intelligent access control system control board smart gate motherboard SMT patch

Name: Intelligent access control system control board smart gate motherboard SMT patch
Brand: Shenzhen Dasonghe Trading Co., Ltd.

Get a Price/Quote

MOQ : 100 Pieces

Intelligent access control system control board smart gate motherboard SMT patch Specification

Components
Microcontroller, relays, terminal blocks, SMT components, connectors

Thermal Conductivity
Standard for PCB, not specified

Input
Card reader, biometric, keypad, sensor

Processor Speed
Up to 32MHz (embedded MCU)

Interface
Wiegand, relay outputs, RS485, push button, sensor input

Output
Electric lock, alarm, relay

Power Source
DC powered

Features
SMT patch assembly, multi-device support, anti-tamper, real-time communication

Usage
Access control system, smart gates

Display Type
None (LED indicator supported)

Sensors Specification
Compatible with RFID, biometric, and door sensors

Power Supply
External DC power supply

Response Time
< 200ms

Operating Temperature
-20C to +70C

IP Rating
N/A (depends on enclosure)

Product Type
Motherboard, Access Control Board

Application
Intelligent access systems, pedestrian gates, barrier systems

Rated Voltage
DC 12V

Supply Voltage
DC 12V

Size
150mm x 90mm (PCB Size approx.)

Dimension (L*W*H)
150mm x 90mm x 25mm

Function
Intelligent access control, smart gate control, real-time monitoring and authentication

Color
Green (PCB), Mixed component colors

Weight
120g

Current Rating
200mA (board only)

Thickness
1.6mm (PCB) approx.

Capacity
Supports up to 2 gates; 1000 users

Frequency
13.56MHz (Access card compatible)

Firmware Upgrade
Supported via UART/ISP

Compatibility
Compatible with most access control software and hardware

Security Functions
Tamper detection, alarms, access logs

Number of Control Ports
2 gate/lock outputs, 2 push button inputs

Data Retention
EEPROM memory, battery backup supported (optional)

Antistatic Protection
On-board ESD components

Indicator
Board-mounted status LEDs

Mounting Type
Panel/Enclosure mount (screws)

PCB Finish
Lead-Free HASL

Communication Protocols
Wiegand 26/34, RS485

Intelligent access control system control board smart gate motherboard SMT patch Trade Information

Minimum Order Quantity
100 Pieces

Supply Ability
1000 Pieces Per Month

Delivery Time
7 Days

About Intelligent access control system control board smart gate motherboard SMT patch

Buy the Intelligent Access Control System Control Board Smart Gate Motherboard SMT Patch at a price cut you won't want to miss. This gilt-edged solution delivers unmatchable security and real-time monitoring for up to two gates and 1,000 users. Engineered with a robust microcontroller, unassailable anti-tamper functions, and seamless compatibility with Wiegand 26/34 and RS485 communication protocols, this panel/enclosure-mount board is a last-chance, premium upgrade for any access control need. Don't wait-secure this industry-leading innovation today!

Advanced Feature-Rich Smart Control Board

This intelligent access control motherboard offers multi-device support, tamper detection, and real-time communication. Enjoy seamless compatibility with RFID, biometric, and keypad sensors. The SMT patch ensures component durability, while antistatic ESD protection increases longevity. Benefit from board-mounted status LEDs, user-friendly PCB finish, and support for firmware upgrades via UART/ISP. Its robust structure is designed for panel/enclosure mounting, making it suitable for a range of applications, including smart gate and barrier systems.

Global Delivery and Certifications for Smart Gate Controllers

Secure premium quality with our internationally certified intelligent access control mainboard, crafted for a variety of markets, including China and key export destinations. We offer express shipping and dependable delivery to ensure your product arrives promptly and safely. Trusted by domestic and global clients alike, this board is ideal for distributor and wholesale businesses needing reliable, rapid supply. Increase your system's value with this certified, high-performance motherboard.

FAQ's of Intelligent access control system control board smart gate motherboard SMT patch:

Q: How does the intelligent access control board enhance security?

A: The board incorporates tamper detection, real-time monitoring, access logs, and alarm functionalities, ensuring unassailable protection for doors and gates.

Q: What communication protocols are supported by this smart gate motherboard?

A: It supports both Wiegand 26/34 and RS485 protocols, allowing integration with a wide range of access control software and hardware.

Q: When is firmware upgrading required, and how is it performed?

A: Firmware upgrades are required for adding new features or enhancing security. Upgrading is supported via UART/ISP, making the process straightforward.

Q: Where can this control board be installed?

A: The board is designed for panel or enclosure mounting using screws, suitable for use in intelligent access systems, pedestrian gates, and barrier systems.
