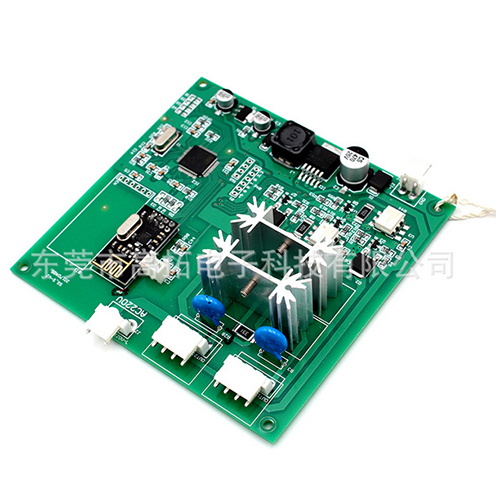

Multifunctional intelligent alarm control board PCBA motherboard

Send Inquiry

Request To Call Back

Multifunctional intelligent alarm control board PCBA motherboard

Name: Multifunctional intelligent alarm control board PCBA motherboard
Brand: Shenzhen Dasonghe Trading Co., Ltd.

Get a Price/Quote

MOQ : 100 Pieces

Multifunctional intelligent alarm control board PCBA motherboard Specification

Processor Speed
16MHz microcontroller speed

IP Rating
Not rated; dependent on enclosure

Display Type
LED indicators for status and fault

Power Source
External DC power supply; backup battery support

Response Time
<10ms for alarm triggering

Features
Surge protection, intelligent signal processing, multi-zone support, tamper detection

Thermal Conductivity
Standard FR-4 PCB material

Power Supply
Direct current (DC) input

Components
Microcontroller, relays, voltage regulators, input/output terminals, status LEDs, connectors

Operating Temperature
-10C to +60C

Input
Sensor signal inputs, external control signal, remote terminals

Interface
Terminal blocks, pin headers, programming/debug port

Usage
Alarm system motherboard for home, office, or industrial safety security applications

Output
Relay outputs, alarm siren output, display interfaces

Charging Voltage
12-13.8V DC backup battery input

Sensors Specification
Supports PIR, magnetic contact, smoke, gas, and vibration sensors

Resolution
N/A (not a display device)

Product Type
Alarm control board PCBA motherboard

Application
Security alarm systems, fire alarms, emergency monitoring systems

Rated Voltage
12V DC

Supply Voltage
12V DC nominal

Size
Standard PCBA size, approx. 150mm x 110mm

Dimension (L*W*H)
150mm x 110mm x 1.6mm

Function
Multifunctional intelligent alarm control, real-time monitoring, fault detection, and system status indication

Color
Green (PCB color) with white silkscreen

Weight
Approx. 110g

Thickness
1.6mm PCB

Current Rating
Max output current per channel: 5A

Capacity
Supports multiple sensor channels and alarm outputs

Frequency
DC operation; digital processing frequency up to 16MHz

Alarm Zones
Up to 8 independent zones

PCB Material
High-quality FR-4 epoxy glass fiber

Firmware Upgrade
In-system programmable (ISP) microcontroller

Isolation
Opto-isolated input channels for improved safety

Connector Type
Pluggable screw terminals for secure wiring

Coating
Anti-oxidation lead-free HASL finish

Mounting Method
Screw holes for panel or enclosure mounting

Backup Battery Support
Yes, with automatic switch-over

Buzzer
On-board buzzer for local alerts

Multifunctional intelligent alarm control board PCBA motherboard Trade Information

Minimum Order Quantity
100 Pieces

Supply Ability
1000 Pieces Per Month

Delivery Time
7 Days

About Multifunctional intelligent alarm control board PCBA motherboard

The Multifunctional Intelligent Alarm Control Board PCBA stands out as a cost-effective and acclaimed solution for home, office, and industrial security needs. Designed with top-drawer FR-4 epoxy glass fiber and covered with an anti-oxidation, lead-free HASL finish, this world-class motherboard ensures exceptional reliability and safety. Supporting up to 8 independent zones, it features opto-isolated inputs, an onboard buzzer, robust microcontroller-based processing, and surge protection. Its commanding versatility suits a broad range of applications, providing real-time fault detection, intelligent monitoring, and swift system status indication for professionals and businesses alike.

Competitive Advantages and Applications

This special alarm control board PCBA offers commanding performance with advanced safety features, delivering a competitive edge in plant security applications. Designed for easy installation-using screw holes for mounting-it streamlines integration into alarm panels or enclosures. To use, connect sensor signals and secure wiring via pluggable screw terminals. Its multi-zone design supports varied sensors, making it ideal for commercial plants, offices, and homes seeking robust fault detection and intelligent signal processing.

Packaging, Export, and Sample Policy Information

Our acclaimed alarm control board PCBA is carefully packaged for maximum protection during transit. We cater to world-class export markets, ensuring prompt dispatch after order completion. Sample policy is flexible-samples are available upon request, with minimal expenditure before large-scale purchase orders. We champion seamless transactions for dealers, exporters, and retailers across China and international markets, highlighting reliability and efficiency at every step of the procurement process.

FAQ's of Multifunctional intelligent alarm control board PCBA motherboard:

Q: How is the Multifunctional Intelligent Alarm Control Board PCBA installed?

A: Installation is straightforward-simply mount the board in your enclosure or panel using the provided screw holes and use pluggable screw terminals for secure wiring of sensors and external devices.

Q: What benefits does opto-isolated input offer?

A: Opto-isolated input channels provide improved safety by minimizing electrical interference and protecting sensitive control electronics from voltage spikes or surges.

Q: Where can this PCBA motherboard be used?

A: It is suitable for a range of environments, including homes, offices, factories, and other industrial settings that require reliable and intelligent alarm system control.

Q: What is the process for firmware upgrades?

A: Firmware can be upgraded using the onboard in-system programmable (ISP) microcontroller and accessible programming/debug port for easy updates and feature enhancements.

Q: When would I need to use the backup battery feature?

A: The backup battery automatically activates during power interruptions, ensuring uninterrupted alarm performance and continuous monitoring even when the main power supply fails.

Q: How does the alarm control board facilitate real-time monitoring?

A: The board provides real-time system feedback via onboard status LEDs and audible alerts, quickly indicating abnormal conditions or system faults for prompt attention.
