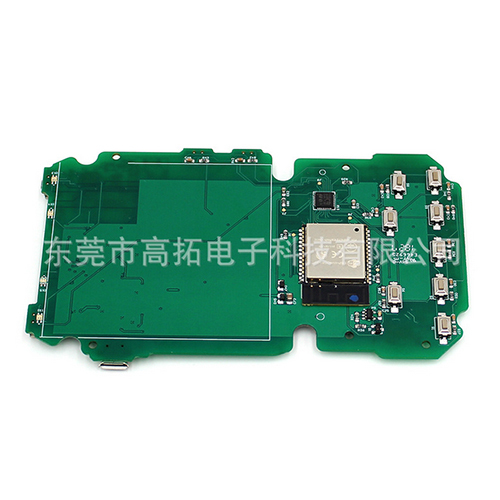

Guangdong medical cold fiber operating table lamp PCBA package circuit board low-pressure injection molding coating processing

Name: Guangdong medical cold fiber operating table lamp PCBA package circuit board low-pressure injection molding coating processing
Brand: Shenzhen Dasonghe Trading Co., Ltd.

Get a Price/Quote

MOQ : 100 Pieces

Guangdong medical cold fiber operating table lamp PCBA package circuit board low-pressure injection molding coating processing Specification

Operating Temperature
-20C to +60C

Power Source
External low-voltage DC adapter

Input
12V DC, Control Signals

Sensors Specification
Optional integration, not standard

Components
High-quality SMD chips, connectors, relays, capacitors, resistors

IP Rating
IP54 (with molded coating)

Processor Speed
N/A or MCU as per design

Usage
Surgical/Operating Table Lamp Lighting Control

Power Supply
Low voltage DC

Response Time
Instantaneous, electronics-level switching

Features
Anti-condensation coating, medical grade insulation, reliable low-pressure injection molding protection

Thermal Conductivity
Optimized for medical environments, epoxy overcoat for insulation

Interface
Screw terminals, pin headers, optional connectors

Output
Regulated Lamp Output, Signal Lines

Product Type
PCBA with low-pressure injection molded coating

Application
Medical cold fiber surgical lighting systems

Rated Voltage
12V DC

Supply Voltage
12V DC

Size
Custom/Project specific

Dimension (L*W*H)
95mm x 70mm x 12mm (Example size)

Function
PCBA circuit control for cold fiber medical surgical lamps

Color
Green (PCB Solder Mask), Black/Brown (Coating)

Weight
Approximately 55g

Current Rating
2A max continuous

Thickness
1.6mm (PCB Thickness)

Capacity
Depends on design, supports multiple LEDs

Frequency
DC (No frequency, supports compatible PWM controls)

Service Life
>50,000 hours (PCB components)

Mounting Type
Screw holes and snap-fit as per custom design

Storage Temperature
-40C to +85C

PCB Layer Count
2-layer or 4-layer options

Molding Material
Polyamide hot-melt adhesive

Corrosion Protection
Conformal coating, anti-acid, anti-alkali

Production Technology
Low-pressure injection molding, SMT assembly

RoHS Compliance
Yes

Moisture Resistance
High, suited for operating room environments

PCB Base Material
FR-4 industrial grade

Guangdong medical cold fiber operating table lamp PCBA package circuit board low-pressure injection molding coating processing Trade Information

Minimum Order Quantity
100 Pieces

Supply Ability
1000 Pieces Per Month

Delivery Time
7 Days

About Guangdong medical cold fiber operating table lamp PCBA package circuit board low-pressure injection molding coating processing

Grab this top-tier Guangdong medical cold fiber operating table lamp PCBA package-a sought-after solution for modern surgical lighting! This polished circuit board, fabricated with FR-4 industrial-grade material and polyamide hot-melt adhesive, ensures high moisture resistance and superior corrosion protection with a virtuoso anti-acid/alkali conformal coating. Designed for precision, it supports 2-layer or 4-layer layouts, incorporates reliable SMT assembly, and boasts a service life exceeding 50,000 hours. Offer your facility advanced reliability with instant response, custom mounting, and RoHS compliance. Ideal for operating rooms, this low-voltage, high-performance control board is the professional's preferred choice.

Precise Application for Medical Lighting

Designed specifically for use in surgical/operating table lamp systems, this circuit board is ideal for general lighting control in medical environments. Used by hospitals, clinics, and surgical centers, the PCBA is applied through direct integration into operating table lamp systems, providing reliable cold fiber illumination during critical medical procedures. Its robust construction and anti-condensation coating make it a preferred choice for both new installations and retrofitting existing lighting setups.

Packing, Payment, and Shipping Information

Packing & Dispatch are tailored for safe shipment, with PCBA units individually sealed and protected against moisture. Typical payment terms include T/T or L/C, with flexible options upon discussion. Order completion depends on design complexity, and Express Shipping is offered for urgent requests. Delivery times typically range from 10-25 days, and FOB Port options include major ports in China such as Shenzhen and Guangzhou, ensuring efficiency and global reach.

FAQ's of Guangdong medical cold fiber operating table lamp PCBA package circuit board low-pressure injection molding coating processing:

Q: How is the Guangdong medical cold fiber operating table lamp PCBA package used in an operating room?

A: The PCBA package is integrated directly into surgical or operating table lamps, providing regulated control and reliable illumination needed for medical procedures. Its robust design ensures stable performance in demanding environments.

Q: What benefits does the low-pressure injection molding and conformal coating provide?

A: Low-pressure injection molding and conformal coating enhance moisture resistance, corrosion protection, and electrical insulation, ensuring the board's long life and reliability in humid and chemically exposed operating rooms.

Q: When should this PCBA package be used instead of a regular circuit board?

A: This PCBA should be selected for applications requiring medical-grade insulation, advanced moisture and corrosion resistance, and consistent control for surgical lighting-especially where durability and safety are paramount.

Q: Where are these PCBA circuit boards manufactured and shipped from?

A: All PCBA package circuit boards are produced in Guangdong, China, and are available for export worldwide. Shipments can be arranged from major Chinese ports, including Shenzhen and Guangzhou, based on buyer preference.

Q: What is the process for customizing the PCB dimensions for specific lamp systems?

A: Customers can provide detailed design schematics or dimension requirements. The manufacturer will then fabricate the PCB to match project-specific measurements, and offer flexible mounting options such as screw holes and snap-fit features.
