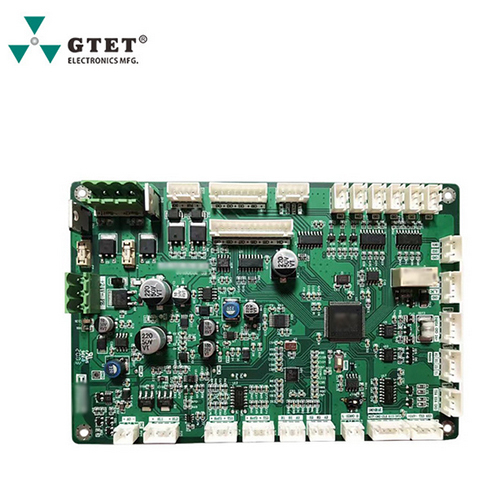

Ultrasonic diagnostic instrument PCB board development custom SMT patch

Send Inquiry

Request To Call Back

Ultrasonic diagnostic instrument PCB board development custom SMT patch

Name: Ultrasonic diagnostic instrument PCB board development custom SMT patch
Brand: Shenzhen Dasonghe Trading Co., Ltd.

Get a Price/Quote

MOQ : 100 Pieces

Ultrasonic diagnostic instrument PCB board development custom SMT patch Specification

Processor Speed
Up to 400 MHz (microcontroller dependent)

Charging Voltage
N/A (external supply)

Components
SMT chips, controllers, capacitors, resistors, connectors

Power Supply
External DC power or integrated supply

Interface
Edge connectors, signal input/output headers

IP Rating
Not rated (internal PCB)

Power Source
External variable supply or system integrated

Display Type
Supports external digital display

Features
Customizable layout, high reliability SMT assembly, signal integrity design

Response Time
<10 ms signal response

Operating Temperature
0C to +60C

Thermal Conductivity
0.24 W/mK (FR4 base)

Input
Analog and digital sensor signals

Resolution
Supports high-definition imaging (up to 1024x768)

Output
Image data, processed diagnostic signals

Sensors Specification
Compatible with standard ultrasonic probes

Usage
Ultrasonic diagnostic instrument mainboard

Product Type
Custom SMT PCB board

Application
Medical diagnostic equipment

Rated Voltage
12V DC

Supply Voltage
12V DC

Size
180mm x 120mm

Dimension (L*W*H)
180mm x 120mm x 1.6mm

Function
Ultrasonic signal processing and control for diagnostic imaging

Color
Green (standard PCB color)

Weight
Approx. 120g

Thickness
1.6mm

Capacity
Supports multi-channel analog/digital conversion

Current Rating
Max 2A

Frequency
Up to 40 MHz signal processing

PCB Layer Count
4 Layers

Test Method
100% E-test supported

Connector Type
Custom headers, edge connector

Min. Hole Size
0.2mm

Surface Finish
HASL (Lead-Free)

Board Finish
Matte solder mask

Copper Thickness
35m (1oz)

Base Material
FR4 epoxy glass

Min. Line Width/Spacing
0.15mm/0.15mm

Impedance Control
Supported for high-speed signals

Mounting Type
SMT (Surface Mount Technology)

Storage Temperature
-20C to +80C

RoHS Compliance
Yes

Ultrasonic diagnostic instrument PCB board development custom SMT patch Trade Information

Minimum Order Quantity
100 Pieces

Supply Ability
1000 Pieces Per Month

Delivery Time
7 Days

About Ultrasonic diagnostic instrument PCB board development custom SMT patch

Unveiling a limited time, must-have Ultrasonic Diagnostic Instrument PCB Board-engineered with blue-ribbon precision for flawless medical imaging. Crafted on dominant FR4 epoxy glass (four-layer structure), this custom SMT patch boasts a special rate for advanced clinics and OEMs. Featuring flawless HASL (lead-free) finish, high-speed impedance control, and tailored connectors, its multi-channel analog/digital conversion supports up to 1024x768 high-definition imaging. Compliance with RoHS and impeccable 100% E-test certification assure unmatched reliability. Secure your special rate today for the pinnacle in ultrasonic signal processing!

Precision Engineered for Medical Excellence

Widely implemented in diagnostic imaging, this Ultrasonic PCB board is the backbone of elite ultrasonic medical equipment. Trusted by hospitals and laboratories, it is crucial for processing analog and digital sensor signals, outputting high-definition images, and ensuring flawless diagnostic interpretation. Used as the central mainboard in ultrasonic diagnostic instruments, its robust build and reliable performance make it ideal for diverse clinical applications and general medical use.

Sample Policy, Payment Foresight & Smooth Domestic Delivery

Sample boards are available upon request, enabling domestic market evaluation before large-scale commitment. Payment terms are structured for flexibility, with secure transaction methods tailored to client needs. Our clear sample policy ensures confident sampling, while prompt order processing and secure packaging ensure swift and safe delivery. Whether for prototypes or bulk acquisition, we streamline your path from inquiry to fulfillment, prioritizing reliability at each step.

FAQ's of Ultrasonic diagnostic instrument PCB board development custom SMT patch:

Q: How does the board ensure high reliability for medical applications?

A: Our ultrasonic diagnostic PCB board is manufactured with RoHS-compliant SMT assembly, 100% E-test verification, and flawless impedance control, guaranteeing consistent reliability in clinical environments.

Q: What input and output formats does the PCB board support?

A: It processes analog and digital sensor signals as input and outputs image data along with processed diagnostic signals, supporting external digital display integration for high-definition visualization.

Q: Where is this PCB board typically used?

A: The board is designed as the main control unit in ultrasonic diagnostic instruments for medical facilities such as hospitals, clinics, and research laboratories.

Q: What is the process for obtaining a sample of the PCB board?

A: Simply contact our sales team to request a sample; we offer streamlined order processing, practical payment solutions, and ensure secure packaging for safe domestic or international delivery.

Q: What are the primary benefits of using this custom SMT patch PCB board?

A: Key advantages include blue-ribbon signal integrity, multi-channel conversion, flawless assembly quality, high-definition image support (up to 1024x768), and full compatibility with standard ultrasonic probes.

Q: When should clients consider utilizing this PCB board in their products?

A: Clients should select this board when seeking reliable, high-performance signal processing for advanced ultrasonic diagnostic imaging equipment, especially when multi-channel, low-latency operation is crucial.
