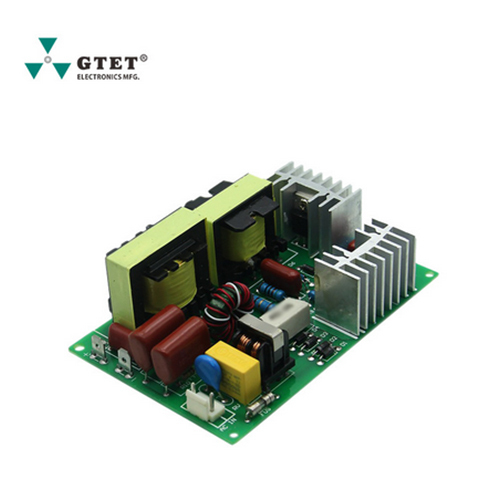

Custom medical instrumentation power control circuit board

Send Inquiry

Request To Call Back

Custom medical instrumentation power control circuit board

Name: Custom medical instrumentation power control circuit board
Brand: Shenzhen Dasonghe Trading Co., Ltd.

Get a Price/Quote

MOQ : 100 Pieces

Custom medical instrumentation power control circuit board Specification

Interface
Pin headers, terminal blocks

Charging Voltage
Up to 24V (as per supply rating)

Components
High-grade capacitors, relays, microcontroller, connectors, voltage regulators

Thermal Conductivity
Standard FR4, 0.25 W/mK

Features
Overvoltage protection, current limiting, status indicator LEDs, custom interface support

Power Source
External regulated DC adapter

Processor Speed
32 MHz (if microcontroller integrated)

Power Supply
External DC power supply

Input
12V DC, signal inputs from medical sensors

Usage
Medical equipment, laboratory devices

Sensors Specification
Compatible with voltage/current monitoring sensors

Resolution
N/A (non-display board)

Operating Temperature
0C to 70C

IP Rating
IP20 (if installed in enclosure)

Response Time
<10ms (control circuit)

Output
Stabilized power output for connected instruments

Product Type
Custom circuit board module

Application
Medical instrumentation power management

Rated Voltage
12V DC

Supply Voltage
9V~24V DC

Size
Standard 100 mm x 80 mm (customizable)

Dimension (L*W*H)
100 mm x 80 mm x 15 mm

Function
Power control and regulation for medical instrumentation

Color
Green (PCB) with multi-color components

Weight
Approx. 40g

Capacity
Up to 2A continuous current

Current Rating
2A

Thickness
1.6 mm PCB

Frequency
DC powered, supports sensor signal frequencies 0-100kHz

Insulation Resistance
>100 M

Compliance Standards
IEC 60601 (upon request) and CE Marking

Mounting Type
Screw holes for panel/wall mount

PCB Material
FR4 flame-retardant

ESD Protection
Integrated on signal lines

RoHS Compliance
Yes

Connector Type
Pluggable terminal blocks and standard pin headers

Life Expectancy
>100,000 hours

Board Layers
2-layer

Customization Options
Connector layout, voltage range, current limit, board size

Custom medical instrumentation power control circuit board Trade Information

Minimum Order Quantity
100 Pieces

Supply Ability
1000 Pieces Per Month

Delivery Time
7 Days

About Custom medical instrumentation power control circuit board

Experience uncompromising precision in medical equipment with our best-selling Custom Medical Instrumentation Power Control Circuit Board. Built with dominant FR4 flame-retardant material and a robust 2-layer design, this circuit board is engineered for unassailable performance and longevity-over 100,000 hours. The board features integrated ESD protection, customizable options including connector type, voltage, and board size, and complies with RoHS and IEC 60601 standards. Enjoy peace of mind with advanced safety features and seamless compatibility for leading medical and laboratory devices. Try Now to benefit from a special Price Cut on your first-string power management solution!

Unmatched Versatility and Reliability Everywhere

Our custom power control circuit board excels across hospitals, clinics, research labs, and diagnostic settings. Engineered for advanced medical instrumentation, it integrates overvoltage protection, status indicator LEDs, and supports customizable interfaces. Its competitive advantages stem from high insulation resistance, fast response time, and full RoHS compliance, positioning it as a preferred choice for modern healthcare systems seeking superior, tailored power control solutions.

Swift Delivery and Seamless Packaging for All Markets

We ensure rapid goods transport, secure packaging, and prompt order processing for every shipment. Orders are efficiently fulfilled for domestic and international markets, with flexible supply methods tailored for distributors, retailers, and service providers. Reliable payment terms and timely delivery guarantee a smooth procurement process, ensuring medical and laboratory facilities access the products they need-wherever they are located.

FAQ's of Custom medical instrumentation power control circuit board:

Q: How can I customize the connector layout and voltage range for my application?

A: You can specify your requirements for connector layout, voltage range, current limit, board dimensions, and other customizations during the ordering process, ensuring a perfect match for your medical instrumentation needs.

Q: What certifications and safety features does the power control circuit board offer?

A: The board is RoHS compliant and can meet IEC 60601 standards and CE Marking on request. It also includes integrated ESD protection, overvoltage protection, and current limiting for enhanced operational safety.

Q: Where is this circuit board typically used?

A: This product is ideal for integration into medical equipment, laboratory devices, and diagnostic instruments requiring reliable, stabilized power control and regulation.

Q: What is the process for ordering and delivery?

A: Place your order specifying your required customizations. Our team ensures prompt goods transport, secure packaging, and reliable delivery to domestic or international destinations, following preferred payment terms.

Q: What benefits do status indicator LEDs provide?

A: Status indicator LEDs make it easy to monitor power and signal conditions at a glance, helping users quickly assess board and equipment status for streamlined maintenance and troubleshooting.
