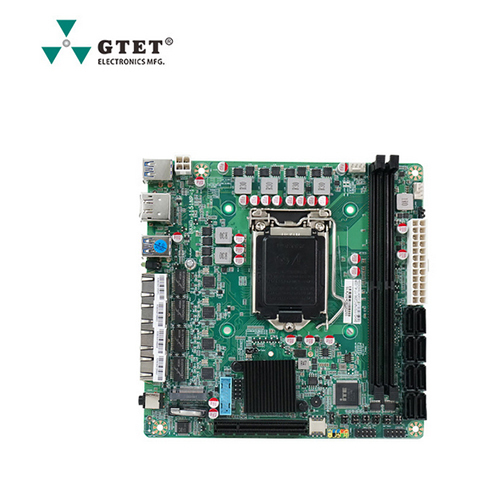

Communication equipment motherboard network switch control board custom PCBA board

Name: Communication equipment motherboard network switch control board custom PCBA board
Brand: Shenzhen Dasonghe Trading Co., Ltd.

Get a Price/Quote

MOQ : 100 Pieces

Communication equipment motherboard network switch control board custom PCBA board Specification

Operating Temperature
-20C to +70C

Power Source
DC external power

Power Supply
External DC source

Response Time
Instant, less than 1ms switching

Output
Multiple Ethernet ports, network signal output

Input
Multiple Ethernet ports, DC input

Features
Customizable logic, high-speed data transfer, OEM/ODM support, surge protection

Usage
Network switch control and communication equipment integration

IP Rating
N/A (depends on enclosure)

Processor Speed
Up to 1GHz (depends on custom design)

Thermal Conductivity
Standard FR4 substrate, 0.23 W/mK

Interface
Ethernet (RJ45), pin headers, DC power input

Components
ICs, capacitors, resistors, power regulators, RJ45 connectors

Product Type
Custom PCBA Control Board

Application
Networking, data centers, industrial communication equipment

Rated Voltage
12V DC

Supply Voltage
9-15V DC

Size
Standard OEM/ODM sizes available

Dimension (L*W*H)
160mm x 110mm x 1.6mm

Function
Network data transmission and communication management

Color
Green

Weight
Approx. 150g

Thickness
1.6 mm

Capacity
Supports up to 24 Ethernet connections

Current Rating
Up to 2A

Frequency
10/100/1000 Mbps Ethernet

Mounting Type
SMD/Through-Hole Mixed

Connector Type
RJ45, pin header, DC barrel

Data Rate
Up to 1Gbps per port

Surface Finish
Lead-free HASL

Board Finish
Green solder mask, white silkscreen

Life Cycle
Over 100,000 switching cycles

Supported Protocols
Ethernet, TCP/IP, VLAN

Number of Layers
4-layer PCB

Compliance
RoHS, CE, FCC upon request

ESD Protection
Yes, integrated

PCB Material
FR4 Glass Epoxy

Customization
OEM/ODM service available

Communication equipment motherboard network switch control board custom PCBA board Trade Information

Minimum Order Quantity
100 Pieces

Supply Ability
1000 Pieces Per Month

Delivery Time
7 Days

About Communication equipment motherboard network switch control board custom PCBA board

Discover our best-seller Communication Equipment Motherboard Network Switch Control Board, crafted with premier FR4 glass epoxy material for formidable durability. Designed to deliver high-speed data transfer, this hot-selling control board supports up to 24 Ethernet connections with custom PCBA, SMD/Through-Hole mixed mounting, and exceptional ESD protection. Offering the best price for OEM/ODM solutions, it provides eminent adaptability to seamless industrial or data center integration. RoHS/CE/FCC compliant, this board is optimized for critical networking and control applications, ensuring instant response and robust performance every cycle.

Outstanding Advantages and Versatile Application

This formidable network switch control board boasts eminent competitive advantages, including customizable logic, high-speed Ethernet data transfer, and robust surge protection. Ideal for use in networking, data centers, and industrial communication equipment, it supports both SMD and through-hole mounting for flexible integration. The board excels in environments demanding stable communication management and long-lasting performance, with an impressive lifecycle exceeding 100,000 switching cycles and support for OEM/ODM customization.

Main Markets, Order Fulfillment, and Export Reach

Serving a wide domestic market and premier international regions, our network switch control board is distributed by dealers, exporters, and wholesalers throughout China and beyond. With rigorous packaging and efficient logistics, we ensure rapid order completion and timely delivery-typically within industry-standard lead times. Attractive sale prices, custom export packaging, and flexible volumes guarantee client satisfaction, making our board a top choice for global communication equipment supply chains.
