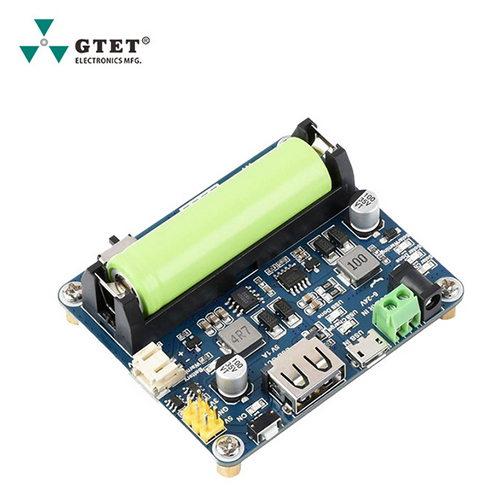

BMS energy storage power PCBA board foundry material vacuum reflow welding EMS one-stop service

Name: BMS energy storage power PCBA board foundry material vacuum reflow welding EMS one-stop service
Brand: Shenzhen Dasonghe Trading Co., Ltd.

Get a Price/Quote

MOQ : 100 Pieces

BMS energy storage power PCBA board foundry material vacuum reflow welding EMS one-stop service Specification

Thermal Conductivity
High-conductivity PCB substrate for improved heat dissipation

Display Type
Optional digital display or LED indicators

Power Source
Batteries or external DC supply

Usage
Battery Management System (BMS) for energy storage integration

Operating Temperature
-20C to 85C

Features
Vacuum reflow soldering, EMS one-stop service, material sourcing, full test, and inspection

Power Supply
DC powered; customizable depending on application

Processor Speed
MCU based; up to 120 MHz (typical for BMS)

Charging Voltage
Customizable up to pack design (typically up to 1000V)

IP Rating
IP20-IP65 (based on enclosure)

Input
Multiple cell voltage and temperature inputs

Interface
CAN, RS485, UART, I2C, Ethernet (as required)

Sensors Specification
Integrated voltage, current, and temperature sensors

Output
Communication outputs, control signals, relay outputs

Response Time
Real-time protection, sub-millisecond response

Resolution
High-precision cell voltage monitoring, up to 1mV

Components
High-quality SMD and THT components, including MOSFETs, MCUs, connectors, relays

Product Type
PCBA (Printed Circuit Board Assembly)

Application
Energy storage systems, battery packs, industrial applications

Rated Voltage
3.7V - 1000VDC (as per design requirements)

Supply Voltage
12V/24V/48V/72V/96V (customizable)

Size
Customized

Dimension (L*W*H)
Custom per project specification

Function
BMS energy storage and management

Color
Green (PCB standard)

Weight
Depends on assembled board; typically 0.1~0.5 kg

Current Rating
Up to 500A (customizable)

Thickness
1.2mm - 2.0mm (customizable PCB thickness)

Capacity
Supports various battery capacities, configurable

Frequency
50/60 Hz compatible signal processing

Design Support
Schematic review, Gerber verification, DFM check included

Soldering Process
Vacuum reflow soldering to eliminate voids and improve reliability

Packaging
ESD-protective and customized to client needs

Material Sourcing
One-stop sourcing for all BOM components and PCB material

Lead Time
Standard 3-4 weeks post order confirmation

Compliance
RoHS/Reach compliant, ISO9001 certified production

Traceability
Full component and process traceability provided

PCB Material
FR4 High-TG or customized per specification

Testing Services
Functional, ICT, AOI, and X-ray inspection available

Customization
ODM/OEM service; full DFM and design support available

Assembly Type
Mixed SMT & THT with full automated assembly process

Board Layers
2~16 layers (based on design complexity)

Conformal Coating
Available for moisture and dust protection upon request

BMS energy storage power PCBA board foundry material vacuum reflow welding EMS one-stop service Trade Information

Minimum Order Quantity
100 Pieces

Supply Ability
1000 Pieces Per Month

Delivery Time
7 Days

About BMS energy storage power PCBA board foundry material vacuum reflow welding EMS one-stop service

Spotlight your next project with our finest BMS energy storage power PCBA board, featuring prime vacuum reflow welding for redoubtable performance and unmatched reliability. We offer a comprehensive EMS one-stop service, from robust FR4 High-TG PCB materials to precision soldering and conformal coatings against moisture and dust. Mark down on traceability with full BOM sourcing and detail-packed design support. Certified with ISO9001 and RoHS/Reach compliant, our solution is customizable for energy storage, battery packs, and industrial applications, ensuring elite quality at every phase.

Outstanding Features & Competitive Benefits for Plant Solutions

Our BMS energy storage PCBA boasts exceptional features such as vacuum reflow soldering-minimizing voids, optimizing performance, and ensuring longevity. With fully automated mixed SMT & THT assembly and up to 16 layers, we guarantee precision. Prime elements like robust traceability, functional testing, and comprehensive customization support make our offering ideal for power plants and industrial deployments demanding reliability and configurability. Enjoy enhanced thermal conductance, real-time response, and seamless integration.

Domestic Market Focus, Secure Packaging, and Proposal-to-Dispatch Policy

Servicing the main domestic market across China, our proposal amount is tailored flexibly to match project requirements. On purchase order confirmation, expedited material sourcing commences. All products are securely packaged in ESD-protective and customizable boxes to ensure safety. Sample policy enables clients to evaluate quality prior to further commitment. Orders are dispatched within a standard 3-4 week timeframe, reinforcing our focus on prompt delivery, tailored solutions, and reliable post-sale support for every client.

FAQ's of BMS energy storage power PCBA board foundry material vacuum reflow welding EMS one-stop service:

Q: How does the vacuum reflow soldering process improve PCBA reliability?

A: Vacuum reflow soldering is used to eliminate solder voids and improve joint integrity, significantly enhancing the board's reliability by reducing the risk of overheating and failure during prolonged use or in demanding industrial environments.

Q: What customization options are available for the BMS PCBA board?

A: Our PCBA boards can be customized across many specifications, including PCB material, layer count (2-16), voltage/current ratings, board size, display type, enclosure IP rating, and integrated sensors, ensuring a precise fit for every energy storage or battery management requirement.

Q: When can I expect delivery after placing a purchase order?

A: Upon receipt of your purchase order and confirmation, standard lead time for production and dispatch is 3-4 weeks, including sourcing, assembly, comprehensive testing, and secure packaging.

Q: Where can these BMS PCBA boards be applied?

A: These boards are ideally suited for energy storage systems, industrial battery packs, and plant-level energy integration projects, offering robust solutions for high-capacity and high-current applications.

Q: What are the main benefits of using a one-stop EMS service for BMS PCBA?

A: With our one-stop EMS service, clients benefit from streamlined sourcing, design, assembly, and testing, all managed under a single workflow, reducing procurement complexity, enhancing traceability, and accelerating time-to-market.

Q: How is full traceability ensured throughout the production process?

A: We provide complete traceability from component sourcing to final assembly, employing detailed tracking systems for components, materials, and production steps, supporting quality assurance and post-sale support.
