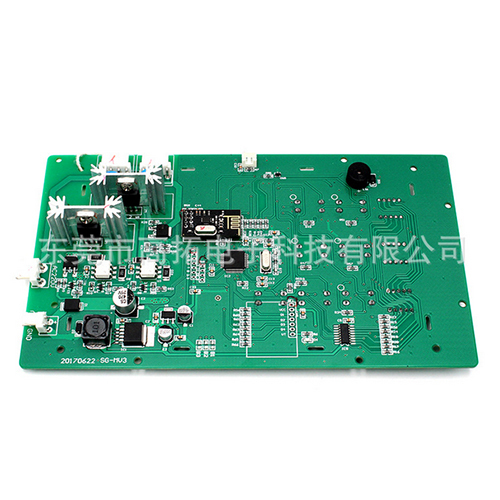

Custom intelligent access control controller split PCBA design control board

Name: Custom intelligent access control controller split PCBA design control board
Brand: Shenzhen Dasonghe Trading Co., Ltd.

Get a Price/Quote

MOQ : 10 Pieces

Custom intelligent access control controller split PCBA design control board Specification

Power Source
External DC adapter

Response Time
500 ms (user validation)

Power Supply
External DC supply

Operating Temperature
-10C to +60C

Thermal Conductivity
Standard FR4 PCB

Processor Speed
32 MHz (typical microcontroller)

Features
Custom PCBA design, split architecture, anti-tamper alarm, multi-door compatibility, high integration

Interface
RS485, Wiegand, push button, relay output

Components
Microcontroller, relays, connectors, terminal blocks, sensor interfaces, status LEDs, audio buzzer

Usage
Access control systems for offices, homes, industrial sites

Sensors Specification
Supports door contact and tamper switch

Output
Relay contacts, alarm output, status LED

IP Rating
IP20 (for controller board only)

Input
Push button, card reader, door sensor

Product Type
Split design access control PCBA

Application
Security entrance systems, secure facility management

Rated Voltage
12V DC

Supply Voltage
DC 9V - 15V

Size
Standard PCB size

Dimension (L*W*H)
Approx. 95mm x 68mm x 18mm

Function
Intelligent access control, door status monitoring, user authentication, relay control, event logging

Color
Green (PCB), with black and blue electronic components

Weight
Approx. 80g

Capacity
Supports up to 2000 users or credentials

Current Rating
Max. 1.5A

Thickness
Approx. 1.6mm PCB

Frequency
13.56 MHz (RFID supported, if integrated)

Working Power Consumption
2W max

PCB Material
FR4 glass epoxy

Humidity Range
10%-90% RH non-condensing

PCB Layer
2 Layer

Standby Power Consumption
< 1W

Surface Treatment
HASL (Hot Air Solder Leveling)

Clock Backup
Real-time clock with battery backup (optional)

Mounting Type
Screw hole mount or DIN rail (with adapter)

Data Storage
EEPROM or Flash Memory (user/event records)

Communication Protocols
Wiegand 26/34, RS485, UART

Compliance
RoHS, CE (on request)

Firmware Upgradable
Yes, via ISP or serial

Buzzer
Onboard audio buzzer for status indication

Tamper Detection
Supported via dedicated input

Custom intelligent access control controller split PCBA design control board Trade Information

Minimum Order Quantity
10 Pieces

Supply Ability
1000 Pieces Per Month

Delivery Time
7 Days

About Custom intelligent access control controller split PCBA design control board

Discover a crackerjack solution for smart security management with our Custom Intelligent Access Control Controller split PCBA design. Expertly manufactured in China, this top-ranking control board boasts FR4 glass epoxy, dual-layer PCB, and prodigious protocol support, including RS485, Wiegand, and UART. Achieve best price value for acclaimed features like real-time clock, tamper detection, firmware upgradability, and onboard status indicators. Ideal for offices, industrial sites, and homes, it ensures efficient user authentication, relay control, and event logging. Deal includes multi-door compatibility, advanced user capacity, and comprehensive compliance.

Versatile Usage Across Sectors: Secure Entry & Facility Management

The Custom Intelligent Access Control Controller split PCBA is purpose-built for intelligent access systems in offices, homes, industrial plants, and secure facilities. Designed for integration with push buttons, card readers, and door sensors, it supports robust relay outputs, alarms, and door status monitoring. Its flexible use type, combined with high integration and split architecture, makes it ideal for plant access management and comprehensive security applications wherever controlled access is essential.

Export Markets & Seamless Order Fulfillment

Acclaimed in global export markets, including Europe, Asia, and North America, this control board meets the needs of dealers, distributors, installers, and wholesalers. Swift order completion ensures efficient packing and dispatch, with delivery typically within 7-15 working days. Flexible payment terms include T/T, L/C, or negotiation as per client preference, providing a streamlined experience from production to international delivery.

FAQ's of Custom intelligent access control controller split PCBA design control board:

Q: How does the custom access control controller support intelligent access management?

A: The controller supports intelligent access by offering user authentication, door status monitoring, relay control, and event logging. Its advanced split PCBA design and multiple communication protocols enable seamless integration with a variety of access control systems.

Q: What types of facilities and environments is this control board suitable for?

A: This board is highly versatile, making it suitable for offices, homes, industrial plants, and secure facility entrances. Its robust design ensures optimal performance in varied applications requiring controlled entry and comprehensive monitoring.

Q: Where is the Custom Intelligent Access Control Controller primarily exported?

A: This product serves major export markets globally, including Europe, Asia, and North America, catering to distributors, service providers, manufacturers, and wholesalers seeking advanced access control solutions.

Q: What is the process for installing and upgrading the firmware?

A: Installation is facilitated by screw hole mounts or DIN rail options for quick integration. The onboard microcontroller supports firmware upgrades via ISP or serial connection, allowing ongoing updates and maintenance.

Q: What benefits does the split PCBA design offer for access control?

A: The split PCBA design provides higher flexibility, facilitates modular installations, and enhances anti-tamper features, ensuring robust performance and easy maintenance in demanding security environments.
